| Categories | Full Duplex Transceiver |
|---|---|
| Brand Name: | Hincn |
| Model Number: | HCL601 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | US$1,178~US$1,268 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 789pcs/month |
| Delivery Time: | 7~14 working days |
| Packaging Details: | Canned and packaged in cardboard boxes |
| Modulation: | TDD OFDM |
| RF Power: | 300mW *2( Each 300mW of the 2 antennas) |
| Encryption: | AES128-bit |
| Transmission range: | 5~22km( drone to ground) |
| Frequency: | 566~678MHz and 1420~1530MHz |
| Flexible channel bandwidths: | 3MHz, 5MHz, 10MHz, 20MHz, 40MHz |
| Company Info. |
| Hincn Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

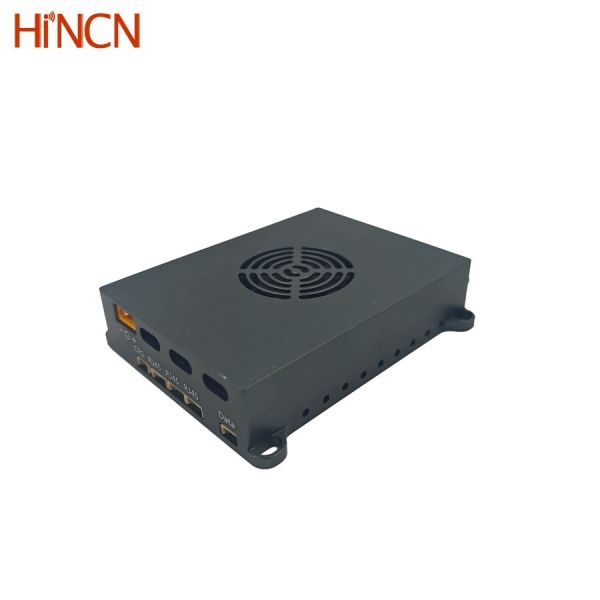

Hincn HCL601 duplex IP video data transceiver operates in the 600MHz or 1.4GHz bands with two way wireless data link. It combines with FHSS(Frequency-Hopping Spread Spectrum) and TDD OFDM technology to make sure better stability signal communication even in rapid movement condition.
| Model number | HCL601 |
|---|---|
| Modulation | TDD OFDM |
| Frequency | 566~678MHz and 1420~1530MHz |
| Bandwidths | 3/5/10/20/40MHz |
| Throughput | Maximum 100Mbps |
| RF transmission Power | 300mW *2 (Each 300mW of the 2 antennas) |
| Constellation | QPSK,16QAM,64QAM, self-adaption |
| Sensitivity | -102dBm (1Mbps at 20MHz) |
| IP data transmission | 3 Ethernet ports |
| Serial data transmission | 1 channel RS232 or TTL |
| Transmission range | 1~2km (ground to ground), 5~22km (drone to ground) |
| Management | Through Web UI or Control UART |
| Encryption | AES128-bit encryption |
| Network mode | Point-to-Point, Point-to-Multipoint, Relay, and Mesh (specify) |
| Movement speed | Support maximum 120km/h |
| Power input | 7~18V |
| Power consumption | <8W |
| Dimensions | 83.7*61.4*19 mm |
| Weight | 98g |
| Connection | Description |
|---|---|
| Ethernet | 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address |
| Data UART | RS232 data UART, 3PIN PH1.25mm connector |
| Control UART | TTL control UART, 3PIN PH1.25mm connector |
| Power in | XT30PW-M connector |
| ANT 1 | Tx/Rx Antenna port, SMA female |
| ANT 2 | Tx/Rx Antenna port, SMA female |
Application:
HCL601 duplex IP video data transceiver is a new type of full duplx communication radio used in mobile communication systems, uses two separate channels for uplink and downlink transmission. It is a lightweight TDD OFDM modulation Network IP radios with 300mW*2 rf power output. Due to its lightweight and mini size, it meets the requirements of various drone and robots for video data transmission via IP camcorder or computer connection.
|
