Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable

Multi Core Armoured Fiber Optic Cable / Outdoor 12 Core Steel Armored Cable

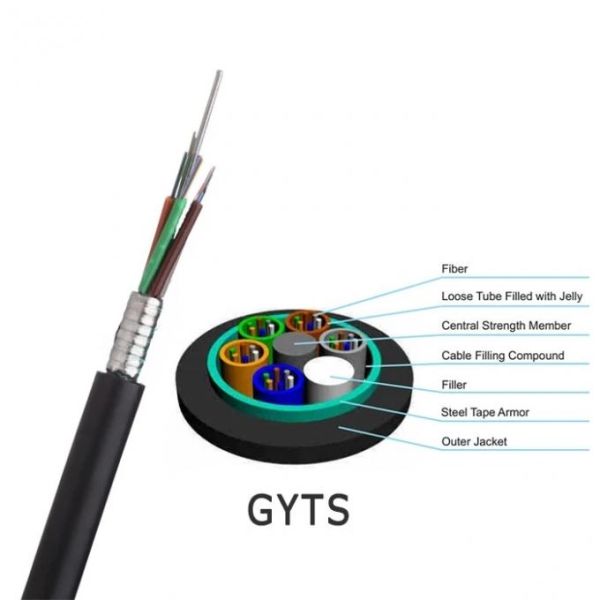

GYTS multi core armoured fiber optic cable outdoor 12 core steel armored cable

1. Description

The fiber,125μm,are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with water-resistant filling compound.
A FRP, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the centre of core as a non-metallic/metallic strength member.
Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.
The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water
ingress.
The cable is completed with a PE sheath.

2.Specifications
2.1 General Specifications

2.2 Structure and Technical Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

3. We produce and test the cable complying with the following standard

4. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
