Stainless Steel Pneumatic Diaphragm Pump 8.4bar Pneumatic Piston Pump 587L/Min

Categories Pneumatic Diaphragm Pump
Brand Name: Meibao
Model Number: MQ50AL-SS/TF/TF/SS
Place Of Origin: China
MOQ: 1
Delivery Time: 5 days
Payment Terms: T/T, L/C, WeChat Pay
Supply Ability: 5000 sets/month
Packaging Details: Carton+wooden case
Max flow: 587L/min
Max air supply pressure: 8.4bar
Max suction lift: 5m(dry)
Max partical can suction: 6mm
Compressed air inlet: 1/2 inch
Liquid suction and discharge port: 2×2 inch male NPT
Mid intermediate housing material: aluminum alloy
Pump body material: 304, 316 stainless steel
Diaphragm material: Telfon
Valve ball: Telfon
Valve seat: 304, 316 stainless steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

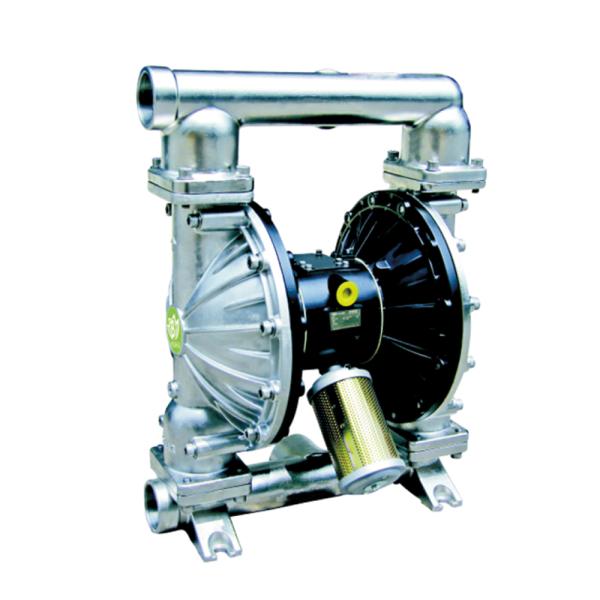

Stainless Steel Pneumatic Diaphragm Pump 8.4bar Pneumatic Piston Pump 587L/Min

Product Name: Stainless Steel Pneumatic Diaphragm Pump

Parameter Range And Product Features:

Flow Rate: 587 L/min (35.2 m³/h)
Max. Working Pressure: 8.4 bar
Air Inlet: 1/2" or 3/4"
Pump Body Material: 304, 316 Stainless Steel
Diaphragm Material: PTFE (Teflon)
Valve Ball Material: PTFE or 316 Stainless Steel
Seals Material: Viton® (Standard) or optional EPDM, NBR
Max. Particle Size: < 3.0 mm
Features: Explosion-proof, can run dry without damage. Self-priming capability, no electricity required. Excellent chemical resistance, leak-free operation, and easy to maintain with no complex tools. Suitable for transferring abrasive slurries, viscous fluids, and various chemicals.
