30X3mm Catwalk Hot DIP Galvanized Metal Bearing Bar Grid Serrated Weld Steel Mesh Treads Trench Drainage Cover Tec-Sieve Expanded Steel Grating for Trailer Ramp

Perforated Safety Grating Plank Advantages
Safe Surface: Grips soles securely - in all directions. Non-slip perforated safety grating surfaces are ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.
Helps Extend Life: Sturdy construction provides the advantages of heavy load-carrying capacity with minimal deflection; rugged durability with longer-lasting performance.
Economical To Install and Use: Offering a lowest total installed cost, Perf safety grating also features long-lasting, rust- resistant materials and finishes.
Versatile: Perf safety grating combines safety and durability with ease of fabrication and versatility.

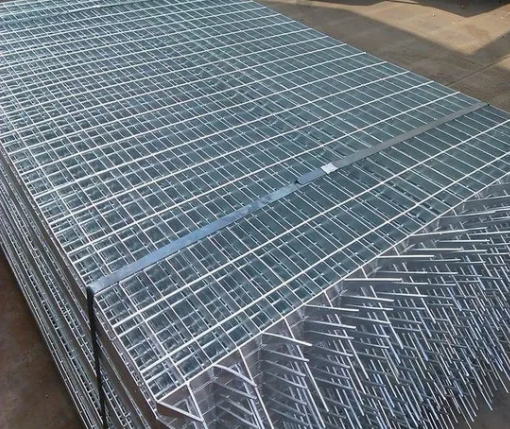

Hot DIP Galvanized Metal Bearing Bar
Benefits of Anti-slip Stair Treads
High strength to weight ratio due to its lightweight design
Slip resistance in all-weather condition due to the grating and tread's embossed traction button
Large debossed holes provide maximum debris drainage
Panel width allows 50% of free air to come in
Single-piece metal construction
Low maintenance
Economical
Hot DIP Galvanized Metal Bearing Bar
Item
Description
Bearing bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
Surface Treatment
Black, self colour, hot dip
galvanized, painted, spray coating
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :J
Hot DIP Galvanized Metal Bearing Bar
