| Categories | Communication Antenna |
|---|---|
| Brand Name: | WSD |
| Model Number: | FTD-5158PW29VH06A |
| Certification: | no have |
| Place of Origin: | CHINA |
| MOQ: | 2 |
| Price: | $50~300 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 |
| Delivery Time: | 30 work days |
| Freq.Range-MHz: | 5150 to 5850 |
| Bandwidth-MHz: | 700 |
| Polarization: | Vertical and Horizontal |
| Gain-dBi: | 28.5 |
| Half-power beam width-°: | H: 5 E: 5 |
| F/B-dB: | ≥ 35 |
| Company Info. |
| WIN&SD Communication Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
● Model: FTD-5158PW29VH06A
● Name: Directional Parabolic Antenna
● Freq.Range: 5150 to 5850 MHz
| Parameter | Value |
|---|---|
| Freq.Range-MHz | 5150 to 5850 |
| Bandwidth-MHz | 700 |
| Polarization | Vertical and Horizontal |
| Gain-dBi | 28.5 |
| Half-power beam width-° | H: 5 E: 5 |
| F/B-dB | ≥ 35 |
| Cross-pol-isolation-dB | ≥ 28 |
| Impedance-Ω | 50 |
| VSWR | ≤ 1.5 |
| Max.Power-W | 100 |
| Lightning Protection | DC Grounded |
| Parameter | Value |
|---|---|
| Connector | 2×N female |
| Connector Position | Back |
| Diameter-M | About Φ0.6 |
| Weight-KG | About 5.5 |
| Radome material | Aluminium alloy |
| Radome color | Gray |

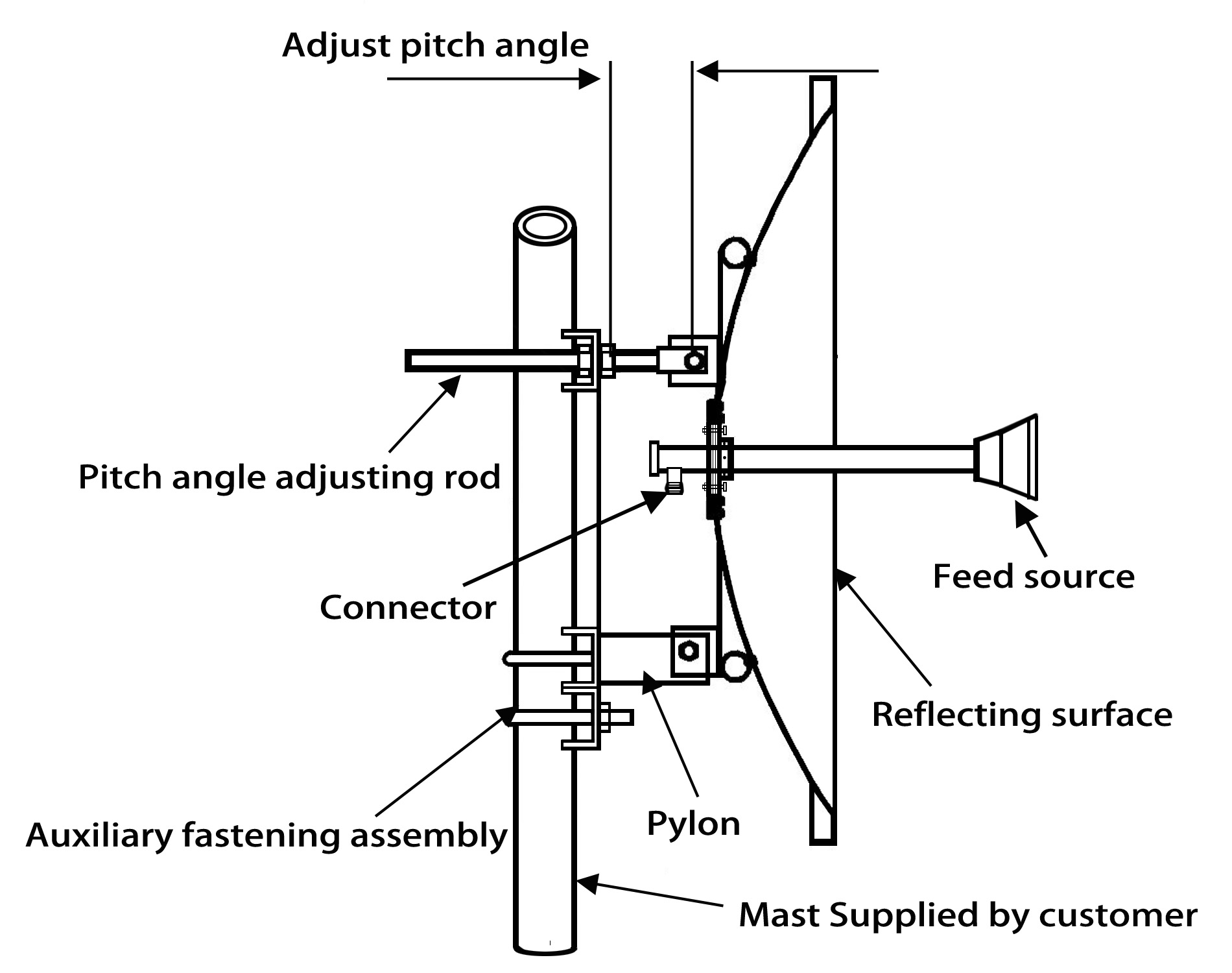

| Mechanical tilt-° | 0 to 20 |
| Operational Temperature-℃ | -40 to 70 |
| Storage Temperature-℃ | -55 to 85 |
| Relative Humidity-% | 5 to 95 |
| Rated Wind Velocity-M/S | 60 |

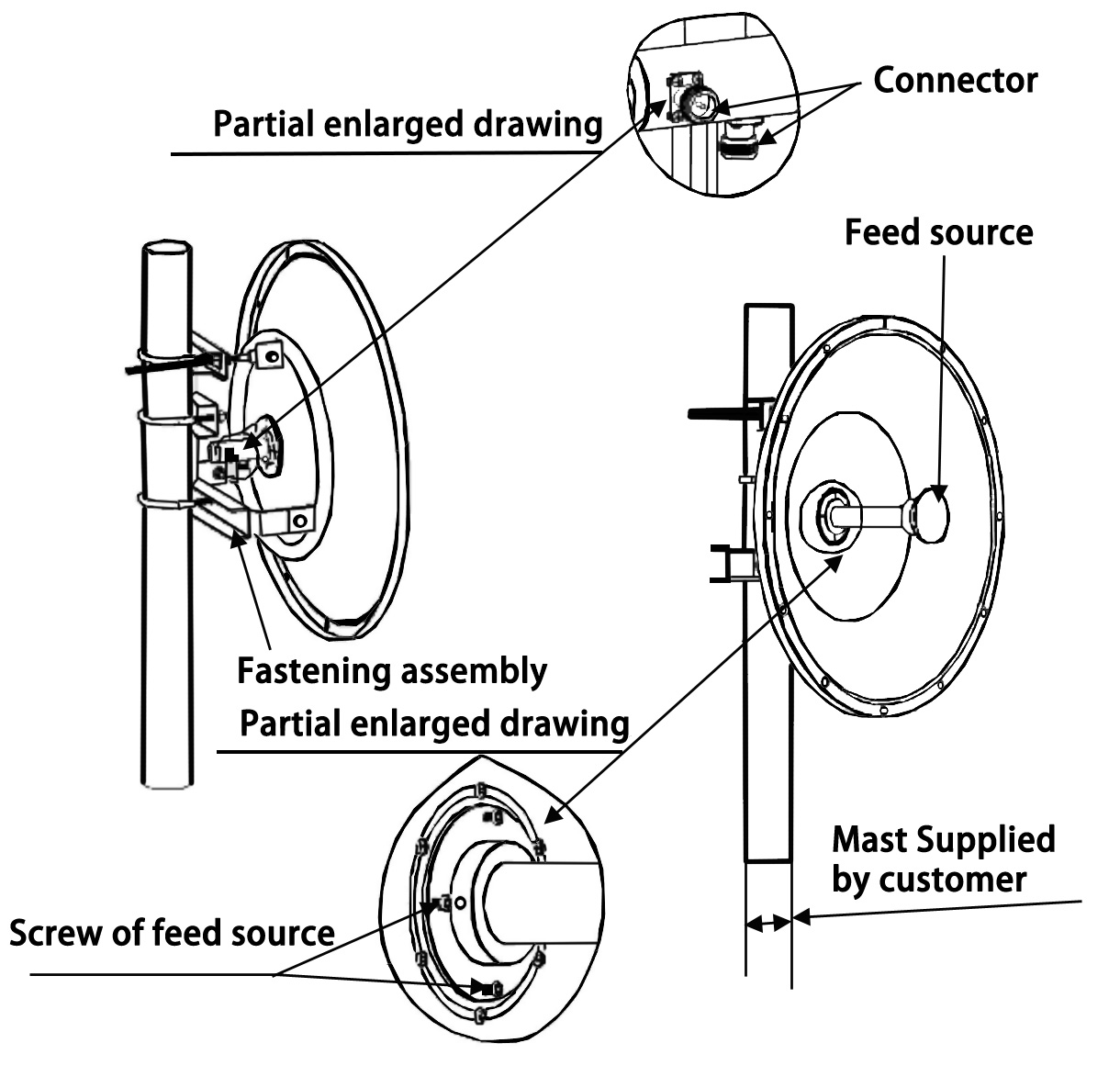

| Mounting way | Mast |
| Mast Diameter-MM | Φ50 to 70 |
|
