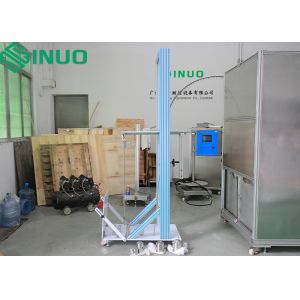

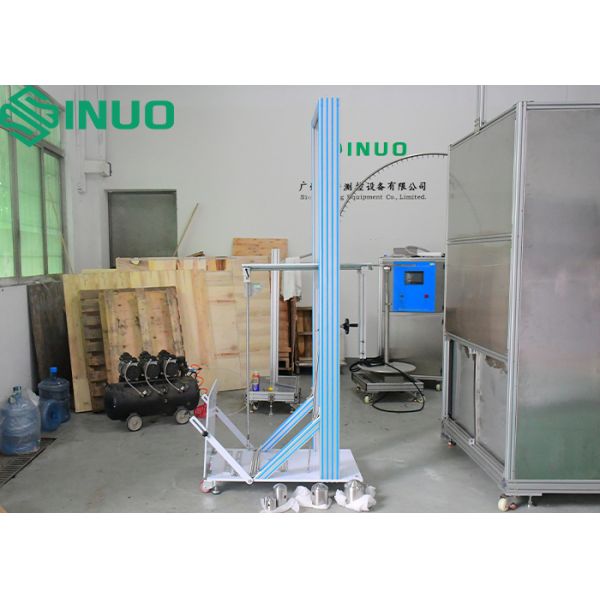

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

Product information:

This impact test apparatus is designed to evaluate the impact resistance and safety performance of household and similar electrical products and their accessories, including plugs, sockets, wall-mounted boxes, screw glands, covers, switches, and luminaires. It ensures compliance with international standards including IEC60068-2-75:2014, IEC60598-1:2017 ,

IEC62262:2002,etc.

Technical Parameters:

Striking Elements (Energy/J)	Optional: 2J (IK07), 5J (IK08), 10J(IK09),20J(IK10), 50J(IK11)
Equivalent Mass kg	0.5 kg, 1.7 kg, 5 kg, 10 kg (supports various hammer heads)
Striking Elements Material	Steel
Pendulum Tube	Length 1000㎜,outer diameter 10mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point	Stroke: 200-1200mm, up and down adjustable by rotating the handwheel manually
Height of Fall
Striking Element Fix and Release	Mechanical latch fixation and manual release
Way of moving	Equipped with casters for easy movement and positioning
