| Categories | Segment LCD |
|---|---|
| Place of Origin: | China |
| Brand Name: | ORIENTRONIC |
| MOQ: | First purchase, no purchase quantity limit. |
| Price: | Prices are set based on design and quantity. |
| Packaging Details: | Prices are set based on design and quantity. |
| Delivery Time: | 4~6 Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
| Number of Segments: | Required definition: 7-segment digits, 14-segment alphanumerics, or custom icons (e.g., battery symbols, status indicators). |
| Viewing Angle: | Default: 6 o'clock or 12 o'clock direction (limited viewing cone). Must confirm mounting orientation for optimal visibility. |
| Contrast Ratio: | Typical range: 5:1–15:1. Requires driver voltage adjustment (±0.3V) or backlight enhancement in low-light environments. |
| Backlight: | Default: LED backlight (200 cd/m² standard). Customizable brightness (50–500 cd/m²) and colors (red/green/blue). |
| Operating Voltage: | Standard range: 3V–5V (±10%). Adjustable to align with client's system power supply requirements. |
| Power Consumption: | Base consumption: <1mW (segment-only). Increases significantly when backlight is active (+30–50mW). |
| Temperature Range: | Standard operation: -30°C to +80°C. Extended range (-40°C to +105°C) available for industrial applications. |
| Vibration Resistance: | COG (Chip-on-Glass) structures require reinforced encapsulation. Not recommended for high-frequency vibration scenarios (e.g., automotive engine compartments) |
| Character/Icon Design: | Required files: Vector graphics (AI/EPS) or CAD drawings. Minimum stroke width: 0.15mm to avoid pixelation or jagged edges |
| Certification: | SICC |
| Company Info. |
| Shenzhen Orientronic Display Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

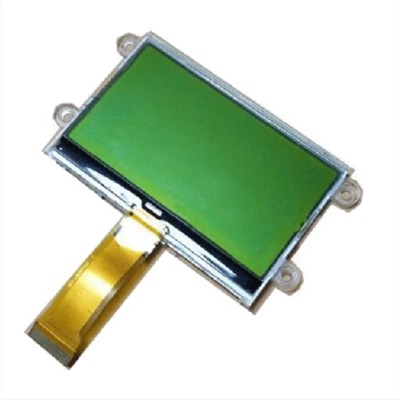

Industrial-Grade Segment LCD Manufacturer | Custom Low-Power, High-Contrast Displays with Software-Driven Control for Harsh Environments & OEM Production
Our Segment LCDs are designed for simple, reliable display of numbers, symbols, and predefined characters in devices where cost efficiency and low power consumption are critical. Utilizing segmented electrode technology, these screens are ideal for industrial, medical, and consumer electronics requiring clear readability and long-term durability.
Ultra-Low Power Consumption
0.01W–0.5W (no backlight) | 0.1W–1.5W (with LED backlight).
High Customizability
Custom segment patterns, icons, and symbols (e.g., battery icons, unit labels).
Wide Temperature Range
Operates reliably from -30°C to +80°C (extended range available).
Long Lifespan
50,000+ hours (backlight lifespan).
| Parameter | Specification |
|---|---|
| Display Type | Segment LCD |
| Viewing Angle | 6 o'clock or 12 o'clock (customizable) |
| Contrast Ratio | 5:1–15:1 (adjustable via drive voltage) |
| Backlight Options | LED (default), EL (electroluminescent) |
| Interface | Direct drive or multiplex (1/2/3/4 COM) |
| Operating Voltage | 3V–5V (customizable) |
| Panel Thickness | 1.0mm–3.0mm (ultra-slim designs available) |
Industrial Controls: Pressure gauges, temperature controllers, timers.
Medical Devices: Blood glucose meters, infusion pump displays.
Consumer Electronics: Calculators, kitchen scales, digital clocks.
Automotive: Dashboard indicators, tire pressure monitors.
IoT Devices: Smart sensors, energy meters.
Segment Layout Design
Provide CAD files or sketches for custom icons/symbols.
Environmental Adaptability
Anti-glare coatings, wide-temperature variants (-40°C to +85°C).
Certifications
RoHS, CE, REACH compliant | Optional ISO 13485 (medical).
Faster logistics.
The more quantity, the more favorable price.
More than 10 years in the industry, quality is more guaranteed.
You can contact us at any time to solve your doubts.
Share your requirements:
Desired segments (e.g., 7-segment digits, custom icons).
Operating environment and certifications.
Receive a free quote or request samples.
Contact us today for reliable, budget-friendly Segment LCD solutions!
|
