| Categories | Single Point Load Cell |
|---|---|
| Model Number: | SC700 |
| Type: | Load Cell |
| Place of Origin: | Guangdong, China |
| Brand Name: | SNC |
| Use: | Force measurement |
| Theory: | strain gauge sensor |
| Output: | mV/V |
| Description: | fishing scales load cell |
| Model: | SC700 |
| Material: | Aluminum |
| Capacity: | 10, 20, 30, 40, 50 KG |
| Hysteresis: | 0.2% F.S. |
| Repeatability: | 0.1% F.S |
| Temperature effect on zero: | 0.2 % F.S./10℃ |
| Output resistance: | 1000±10 ohm |
| Input resistance: | 1000±10 ohm |
| Recommended excitation voltage: | 5-10V |
| Application: | force test equipment |
| Packaging Details: | Fishing Scales Small Size Flat Load Cell Weight Sensor 10Kg-50Kg-----carton package |
| Port: | shenzhen |
| Supply Ability: | 10000 Piece/Pieces per Month Fishing Scales Small Size Flat Load Cell Weight Sensor 10Kg-50Kg |
| MOQ: | 10 pieces |
| Price: | $2-4/pieces |
| Company Info. |
| Hunan Jinlian Cloud Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

Parameters
| Application | finshing scale |
| Model | SC700D |
| Capacity | 10kg, 20kg, 30kg |
| Comprehensive Error | 0.2 |
| Output sensitivity | 1.0±0.1mV/V |
| Nonlinearity | 0.01% F.S. |
| Repeatability | 0.1% F.S. |
| Hyteresis | 0.2% F.S. |
| Creep | 0.1 (3min) % F.S. |
| Zero balance | 0.1 (1min) % F.S. |
| Temp.effect on zero | 0.2 % F.S./10℃ |
| Temp. effect on span | ≤0.15 F.S./10℃ |
| Zero output | ±0.3 MV/V |
| Input resistance | 1000±50 ohm |
| Output resistance | 1000±50 ohm |
| insulation resistance | ≥2000 MΩ |
| Recommended excitation voltage | 5-10V |
| Compensated temperature range | -10-+50℃ |
| Ultimate overload | 150%RO |
| loadcell material | Aluminum alloy |





Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.



1.How to place an order ?
Please provide us more details of what you want, such as:
application, measurement range, output, accuracy, thread type,
electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a
big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your
payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some
products we offer 15month to 24 months warranty.

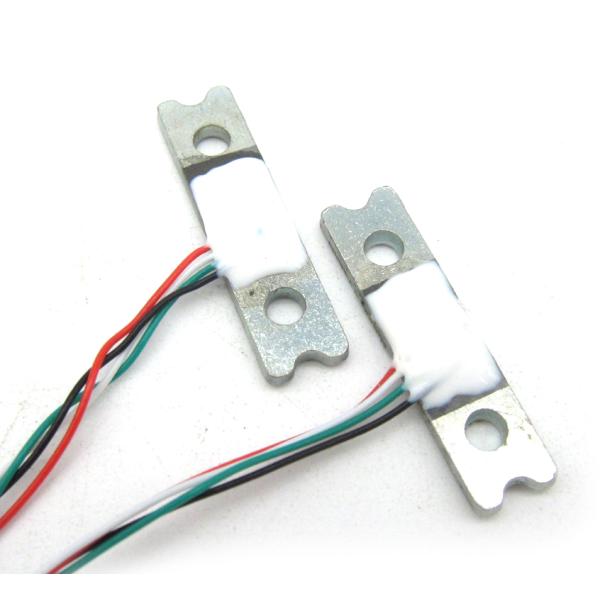

Fishing Scales Small Size Flat Load Cell Weight Sensor 30kg 40kg 50Kg
