| Categories | Other Sensors |
|---|---|
| Model Number: | APM3001 |
| Place of Origin: | CN |
| MOQ: | 1PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PCS |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Standard packaging |
| Measuring Range: | 0 - 500 μg/m³ |
| Detection Accuracy: | ±30% or ±30 μg/m³ |
| Galvanic Preheating Time: | 60 s (start - up settling time) |
| Working Voltage: | DC 5±0.5 V, ripple < 50 mv |
| Working Current: | ≤120 ma |
| Size: | 59 mm×45 mm×20 mm |
| Company Info. |
| ShenzhenYijiajie Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

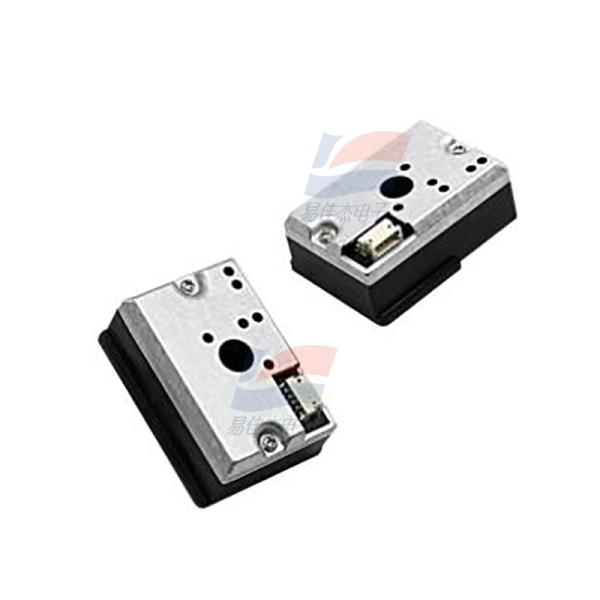

APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers
Product Introduction:
APM3001 is a compact infrared particle sensor with built - in MCU. It is based on the infrared light scattering principle, has stable detection performance, and can effectively detect low - concentration particles (below 100 μg/m³). It also has the characteristics of electromagnetic shielding design, good anti - interference, high precision and low power consumption.
Application Scenarios:
It is suitable for home air purifiers, car air purifiers, residential and commercial air - conditioners, HVAC systems, various indoor air quality monitors, Internet of Things hardware intelligence and other equipment.
Parameter | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|
| Supply Voltage | 4.8 | 5 | 5.2 | V DC |
| Operating Current | 10 | 12 | - | mA |
| Stand - by Current | 2 | 3 | - | mA |
| Measurable Particle Size | 1 | 2.5 | 10 | μm |
| Particle Concentration Range | 0 | - | 1000 | μg/m³ |
| PM2.5 Concentration Measurement Accuracy | - | - | ±15 μg/m³ (0 - 100 μg/m³); ±15% of the reading (100 - 1000 μg/m³) | - |
| Data Refresh Frequency | - | 1 | - | s |
| Power - on Stabilization Time | - | 60 | - | s |
| Response Time | - | 8 | - | s |
| Service Life | - | - | >5 | Y |
| Dimensions | - | 46.3×34.2×19 | - | mm |
| Operating Temperature | -20 | 25 | 75 | ℃ |
| Storage Temperature | -40 | 25 | 85 |
|
