| Categories | YOKOGAWA Transmitter |
|---|---|
| Brand Name: | YOKOGAWA |

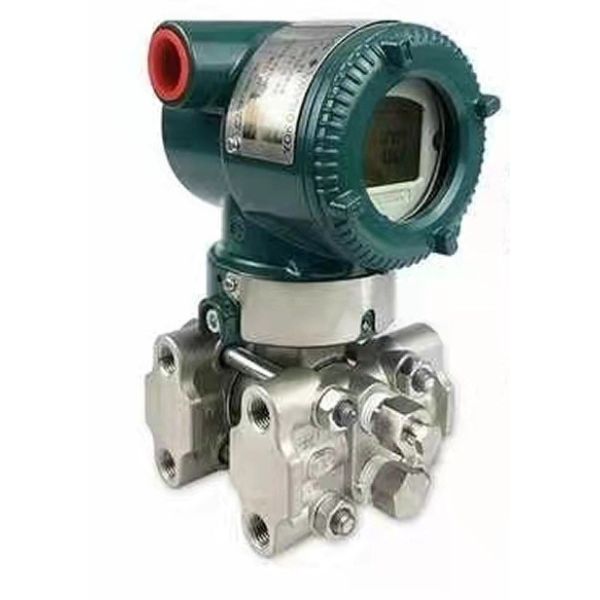

| Model Number: | EJA110E-JFS5J-917NB |
| Certification: | CE |
| Place of Origin: | Japan |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | on request |
| Packaging Details: | standard carton packing |
| Output signal: | 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) |
| Measurement span (capsule): | 0.5 to 5 kPa (2.0 to 20 inH2O) (For Wetted parts material code S) |
| Process connections: | without process connector (1/4 NPT female on the cover flanges) |
| Bolts and nuts material: | B7 carbon steel |
| Installation: | Horizontal piping and left side high pressure |
| Amplifier housing: | Cast aluminum alloy |
| Electrical connection: | 1/2 NPT female, two electrical connections and a blind plug |
| Mounting bracket: | 304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
(includes terminal-based linearity, hysteresis, and repeatability)
| Measurement span | F | |
| Reference accuracy | X ≤ span | ±0.055% of Span |
| X > span | ±(0.005+0.02 URL/span)% of Span | |
| X | 2 kPa (8 inH2O) | |
URL (upper range limit) | 5 kPa (20 inH2O) | |
| Measurement span | M | |
| Reference accuracy | X ≤ span | ±0.055% of Span |
| X > span | ±(0.005+0.0025 URL/span)% of Span | |
| X | 5 kPa (20 inH2O) | |
URL (upper range limit) | 100 kPa (400 inH2O) | |
| Measurement span | H | |
| Reference accuracy | X ≤ span | ±0.055% of Span |
| X > span | ±(0.005+0.01 URL/span)% of Span | |
| X | 100 kPa (400 inH2O) | |
URL (upper range limit) | 500 kPa (2000 inH2O) | |
| Measurement span | V | |
| Reference accuracy | X ≤ span | ±0.055% of Span |
| X > span | ±(0.005+0.005 URL/span)% of Span | |
| X | 1.4 MPa (200 psi) | |
URL (upper range limit) | 14 MPa (2000 psi) | |
EJA110E Specification Overview
| Measurement Types | |
| Primary Variable | Differential Pressure (DP) |
| Secondary Variable | Static Pressure (SP) |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span |
| Secondary Variable | ±0.5% of Span available |
| Response Time | |
| Primary Variable | 90 msec |
| Secondary Variable | 360 msec |
| Long Term Stability | |
| Primary Variable | ±0.1% of URL per 10 years |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | 100:1 |
