| Categories | Fiber Optic Connector |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | CNLINKO |
| Model Number: | BD-24-C/LC/016/PE-02-001 |
| Certification: | CUL,UL,CE,ROHS,CCC,ISO9001 |
| MOQ: | 2 |
| Price: | $6-7 |
| Type: | usb |
| Application: | Signal, Industrial Connectivity |
| Gender: | Male |
| Protect level: | IP65/IP67 |
| Housing and insulating parts: | high-performance engineering plastics |
| Hardware: | Zinc Alloy (pearl hard chrome) |
| Feature: | Easy Installation |
| Package: | Carton |
Features:
Multi-purpose design (3-core, RJ45 signal) for a wide range of
application needs;
Fully plastic and all-metal two-component design, with strong
applicability and complete electromagnetic and radio frequency
interference protection;
Gold-plated contacts, high-strength corrosion resistance and
electrical conductivity, temperature changes that can be
effectively generated by current;
PBT material shell, stable electrical performance, high strength,
pressure resistance, high temperature resistance, explosion
resistance, corrosion resistance;
IP67 protection level in connection state;
Rated current 25A;
One-piece streamlined design.

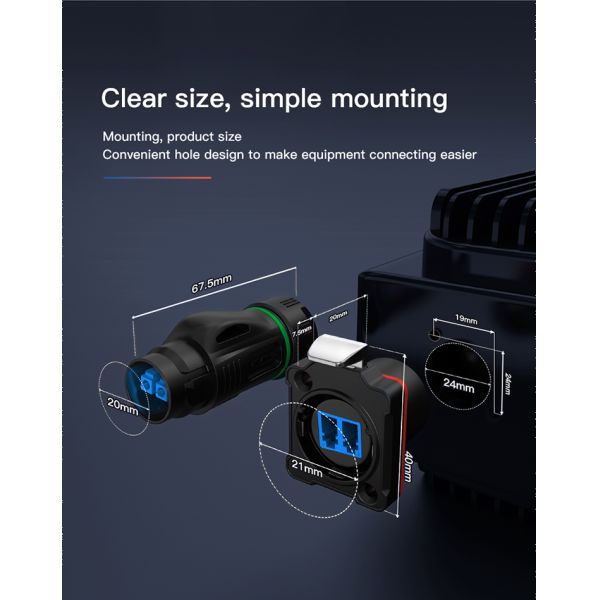

| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty | 2 |
| Current rating(A) | / |
| Temperature rise | / |
| Operating voltage(AC.V.rms) | / |
| Withstanding voltage(AC.V)1min | / |
| Contact resistance | / |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
|
