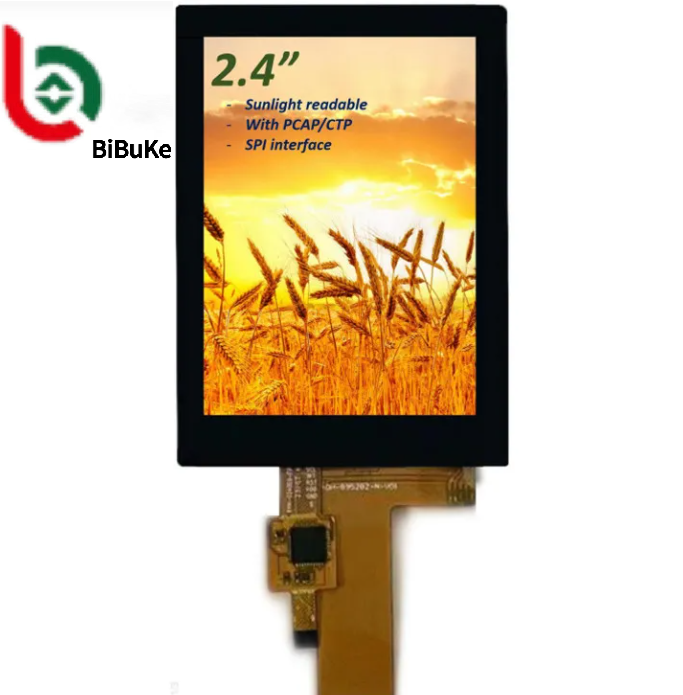

Sunlight Readable 2.4 Inch IPS TFT LCD Display
This 2.4-inch portrait mode TFT LCD module features a capacitive
touch screen with QVGA resolution of 240×320 pixels. Built with
ILI9341V driver IC (compatible with ST7789V) and SPI interface, it
operates on 2.4V to 3.6V supply voltage (typically 3.3V). The
anti-glare surface panel ensures visibility from all viewing
angles.
Equipped with high-brightness backlight and polarizer, this display
achieves surface brightness up to 1000 NITS, making it sunlight
readable. Ideal for embedded systems, industrial devices, security
equipment, and handheld applications requiring high-quality color
imaging.
Technical Specifications
| Product | 2.4 Inch TFT LCD Display |
| Resolution | 240×320 pixels |
| Viewing Direction | IPS All Viewing Angles |
| Pin Number | 15 Pins |
| Surface Luminance | 1000 Cd/m² |
| LED Lifetime | 40,000 Hours |
| Touch Screen | Capacitive Touch Panel |
| Cover Glass Dimension | Customizable |
| Interface | SPI |
| Connection | Plug In |
| Driver IC | ILI9341V |
| Compliance | ISO9001 & RoHS Compliant |

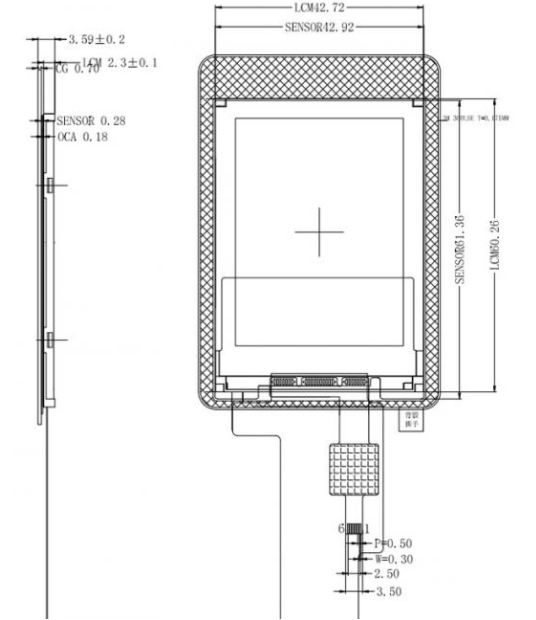

Product Drawings
Pin Definition
- GND
- RS
- CS
- SCL
- DATA
- RESET
- VDD
- VSS
- BL-A
- BL-K
- TP-VCC-
- TP-RST
- TP-INT
- TP-SCL
- TP-SDA
Main Applications
Electronic DIY and Maker Projects: Ideal for Arduino and ESP32 projects, this display with capacitive
touch enables menu navigation and interactive controls. Abundant
development resources make it suitable for beginners creating game
consoles, data recorders, and temperature controllers.
Embedded and Industrial Control Equipment: With wide operating temperature range and stable performance,
perfect for industrial control panels, testing instruments,
portable detection devices, and machinery operation displays.
Education and Training Scenarios: Excellent for teaching embedded display technology and SPI
communication protocols in university engineering programs.
Commonly used in electronic competitions for rapid prototyping.
Small Consumer Electronics Devices: Used in portable Bluetooth speakers, mini sports trackers, and
smart sensor displays where small size and cost-effectiveness are
essential.
Frequently Asked Questions
Can you customize the LCD display with specific dimensions like
65x30x2.8mm?
Yes, we can customize based on your specifications. Please provide
your technical drawings or samples, and we'll recommend suitable
options or create custom solutions.
Do you have smaller sizes available with modified display content?
For segment type LCD modules requiring size or content changes, we
create new glass modules with custom tooling.
Can you change from HTN to STN type LCD displays?
Absolutely, we can modify the display type according to your
requirements.
Do you offer custom LCD module manufacturing?
Yes, we provide full customization services. Please share your
drawings or provide specifications including outline size, glass
thickness, polarizer type, display parameters, connector mode,
temperature range, supply voltage, viewing direction, and drive
conditions.
What is the tooling lead time?
Typically 15-25 days after drawing confirmation and tooling
payment. Exact timing will be confirmed upon drawing approval.
Do you provide samples for evaluation?
Yes, sample orders are available for quality verification.
What is your production lead time?
Standard products in stock ship within one day after payment. Mass
production for custom orders typically takes 15-30 days, with
earlier completion communicated in advance.
