P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
Categories LED Video Wall Display
Brand Name: Charmingled;
Model Number: P1.86 P2 P2.22 P2.5;
Certification: CE, ROHS, LVD, EMC, CB, BIS, UL;
Place of Origin: CHAINA;
MOQ: 10 PCS
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,Paypal,Cash
Supply Ability: 100000 PCS per week
Delivery Time: 30 Working Days after Payment
Packaging Details: Carton Case, Wooden Case, Flight Case
Type Number: SP2.5 SP3 SP4
Viewing Angle: 120°
LED Standard: SMD1515SMD2020
Working, Temperature: -20~50°C'
Working .Humidity: 10%~90%RH'
Working .Voltage: DC 5V.'
Contact Now
Company Info.
Charming Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications

With a steadfast commitment to advancing global entertainment lighting and LED technology, Charming Co., Ltd. has established itself as an industry pioneer.

Our legacy began in 2003 when we launched the world's first LED display for entertainment applications, setting a new standard that we continue to evolve. We have since grown into one of China's most trusted brands in this field.

Our technical excellence is validated by nearly 100 patents and key international certifications such as ISO9001, CE, CCC, CB, ROHS, and SASO.

Embracing our "Charming Achieve Beauty" philosophy, we maintain a 10,000+ sqm manufacturing plant equipped with a fully automated production line. Throughout our 22-year history, we have served customers across over 150 countries and regions with reliable products and comprehensive support.

Technical Specifications
ParametersSP2SP2.22SP2.5SP3SP4 (256x128)SP4 (256x256)
Type NumberSP2SP2.22SP2.5SP3SP4SP4
Dimension (MM)320x160320x160320x160192x192256x128256x256
Pixel Pitch (MM)22.222.5344
LED StandardSMD1515SMD2020SMD2020SMD2020SMD2020SMD2020
Scan Mode1/40 Scan1/36 Scan1/32 Scan1/32 Scan1/32 Scan1/32 Scan
Pixel Density (Dot/m²)2500002025001600001111116250062500
Module Max.Power (W)22202410510
Best Viewing Distance (M)≥2.5≥2.5≥2.5≥3≥4≥4
Refresh Rate (Hz)76803840/19203840/19203840/19203840/19203840/1920
Brightness (CD/m²)800≥700≥800≥600≥400≥400
Viewing Angle120°120°120°120°120°120°
Protection LevelIP42IP42IP42IP42IP42IP42
Grey Level14-16 bit14-16 bit14-16 bit14-16 bit14-16 bit14-16 bit
Working Temperature-20 ~ 50℃-20 ~ 50℃-20 ~ 50℃-20 ~ 50℃-20 ~ 50℃-20 ~ 50℃
Working Humidity10% ~ 90%RH10% ~ 90%RH10% ~ 90%RH10% ~ 90%RH10% ~ 90%RH10% ~ 90%RH
Life Span≥50000 Hours≥50000 Hours≥50000 Hours≥50000 Hours≥50000 Hours≥50000 Hours
Working VoltageDC 5VDC 5VDC 5VDC 5VDC 5VDC 5V

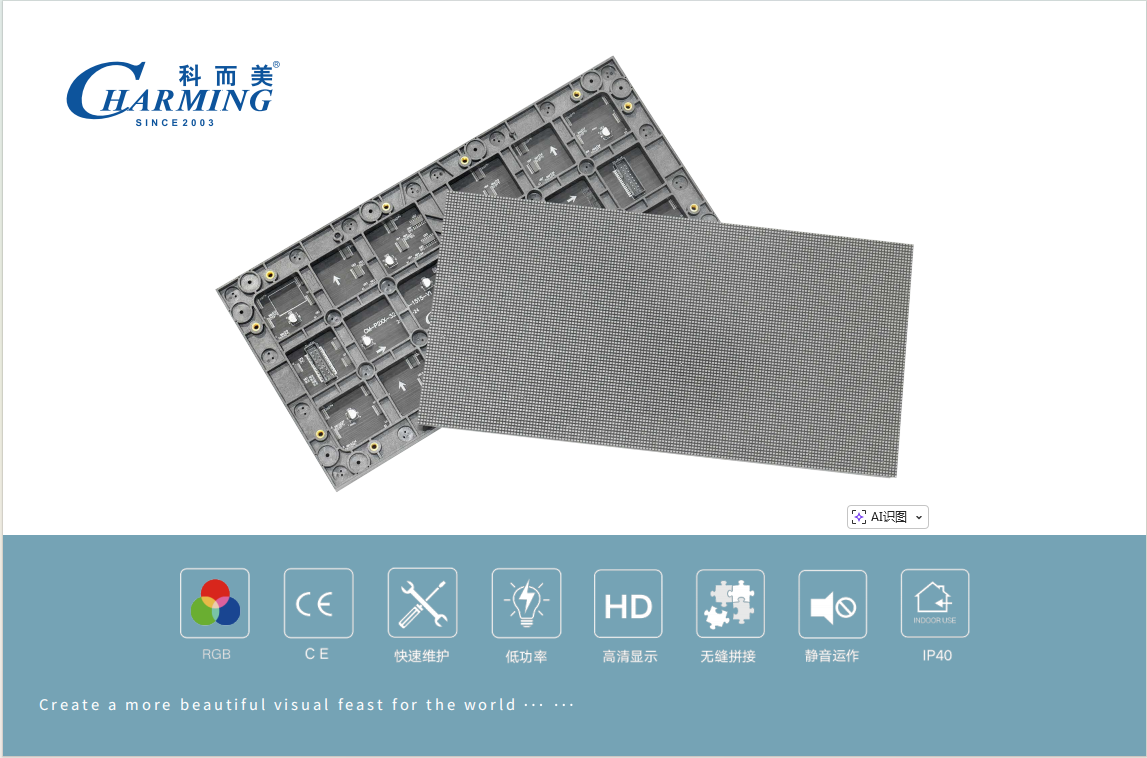

P2 LED Display Module close-up view
Warranty & Support
Comprehensive 2-Year Protection
  • 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
  • Lifetime Maintenance: Only material costs apply after warranty period
  • Free Technical Training: Includes hands-on operation & maintenance training
  • Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
  • On-site technical support (available upon request)
  • Remote troubleshooting assistance
  • Regular system maintenance recommendations
  • Software/firmware updates
  • Spare parts supply chain support

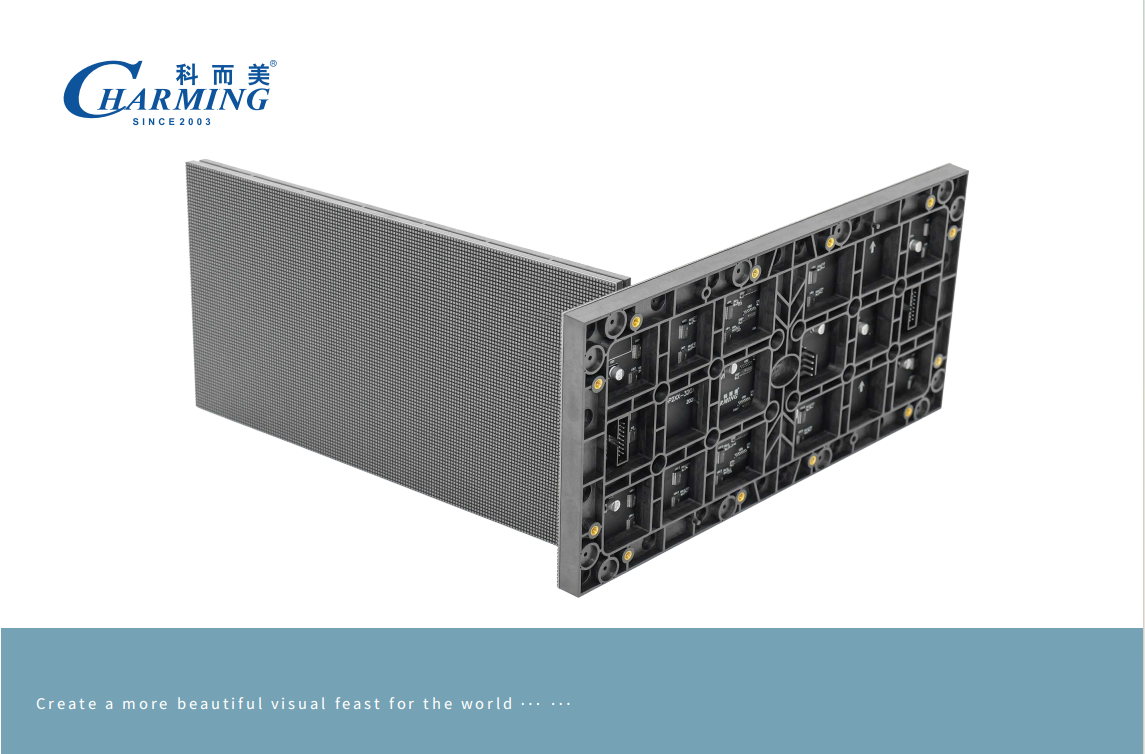

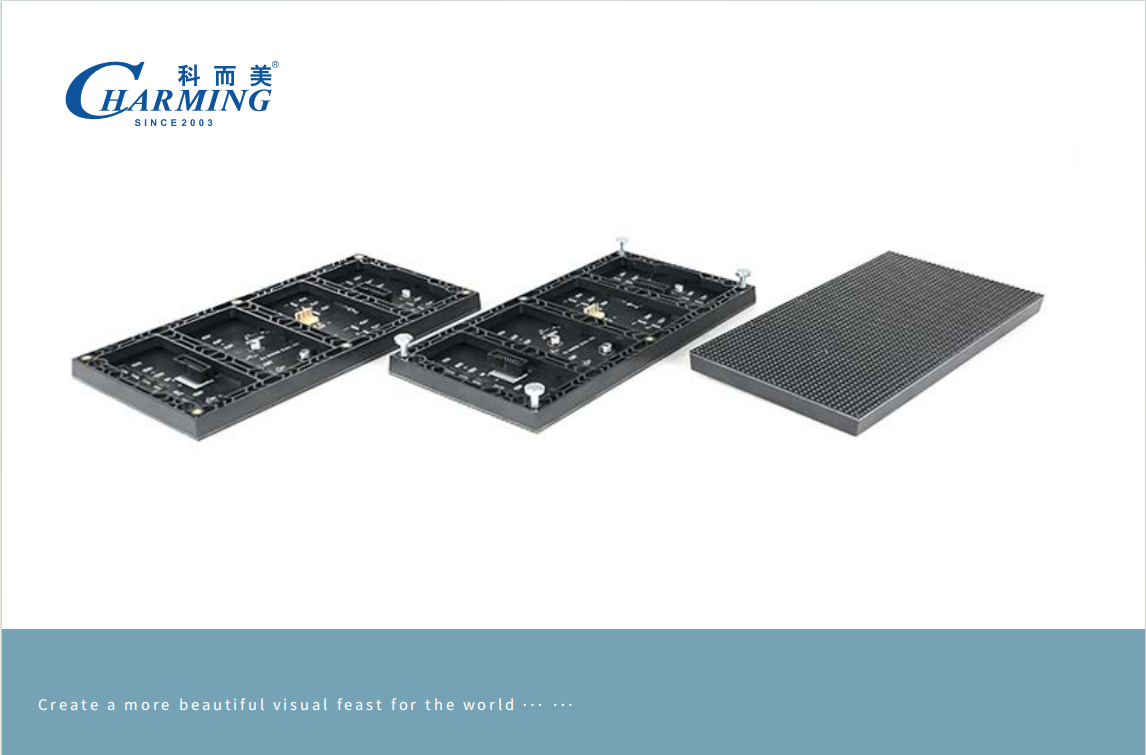

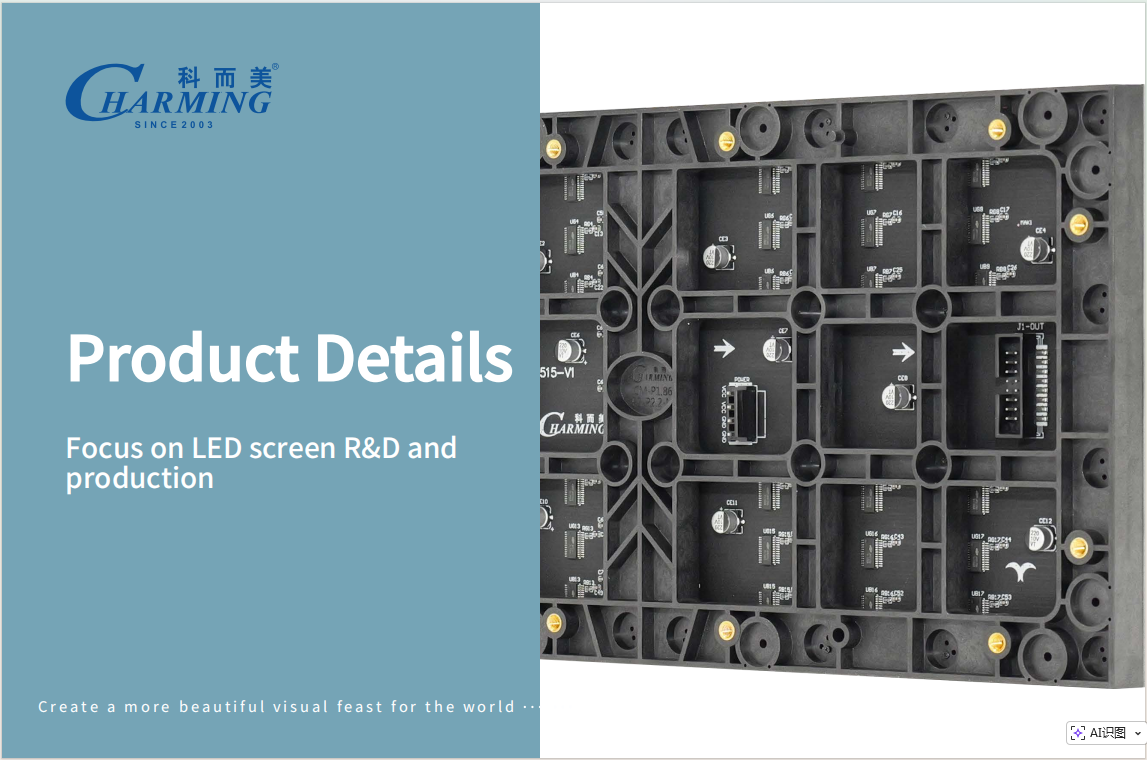

LED display installation example LED display in conference room setting LED display advertising application
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
