JSB370-G 24.4mm Micro Motor Water And Air Pump For Household Appliances, Medical Devices, Beauty Instruments, Aquarium Equipment

JSB370-G 24.4mm Micro Motor Water And Air Pump For Household Appliances, Medical Devices, Beauty Instruments, Aquarium Equipment

Micro Motor Water And Air Pump Title:

JSB370-G 24.4mm Micro Motor Water And Air Pump For Household Appliances, Medical Devices, Beauty Instruments, Aquarium Equipment

Micro Motor Water And Air Pump Description:

• Rated Voltage range:DC3.0V-24V

• Rated Speed:1000rpm-10000RPM

• Motor Size: φ24.4*30.8mm,diamter 24.4mm ,30.8mm length mini motor

• Suitable to small diameter, low noise and big torque application

• Motor default direction:CW&CCW

• Motor type :Brush dc motor

• Brush type :Metal brush/Carbon brush

• Motor shaft diameter :φ2.0mm

• Can be match with wheel, One shaft one wheel or one motor, one wheel

• Power:0-4.0 W

• Pressure:0-130KPA
• Water Flow:200-500mL/min Air Flow: 1.0-2.4L/min

  Use environment:0~50°℃,75%RH

  Suction head:＞2m

  Lift of pump:＞20m

• Working temperature:-40~+60°c

• We can provide samples for your test.

• Rotating speed is constant and can be made as you required.

• Widely used in Washing Mobile Phones and Cleaning Equipment Water pump Air pump, Household appliances, medical devices, beauty instruments, aquarium equipment

Micro Motor Water And Air Pump Key Attributes:

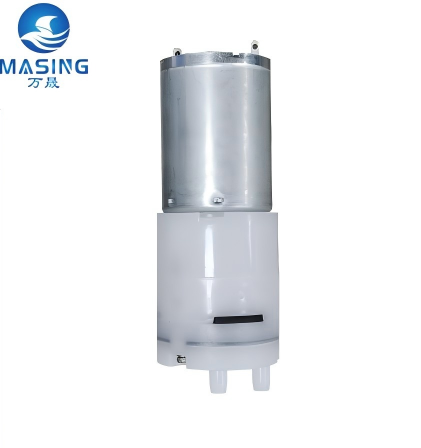

Micro Motor Water And Air Pump Product Photo:

Micro Motor Water And Air Pump Product Spec:

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

Packaging and delivery:

Supply Ability:

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home
