Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor

Categories Stone Profile Cutting Machine
Brand Name: Xianda Machinery
Model Number: BLMM-1800-2D
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin: Jinjiang, Fujian, China
MOQ: 1
Price: To Be Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Delivery Time: 15 Days
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Control: CNC
Power Source: Electric
Cutting Edge: Smooth
Usage: Cutting/Milling/Profiling
Water Consumption: 8m³/h
Gross Weight: 5000kgs
Main Motor: 15*2/18.5*2kw(Optional)
Blade Diamension: 350-600mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor

BLMM-1800MAX-2D | Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine

Heavy-Duty 3-Axis CNC Processor for Linear, Square Baluster & Special Kerbstone – One-Piece Minimum Order

1. Machine Overview

The BLMM-1800MAX-2D is a bridge-type, four-blade, dual-beam CNC stone-cutting and milling centre engineered for high-efficiency, high-accuracy, high-stability production of:
  • Linear stone pieces

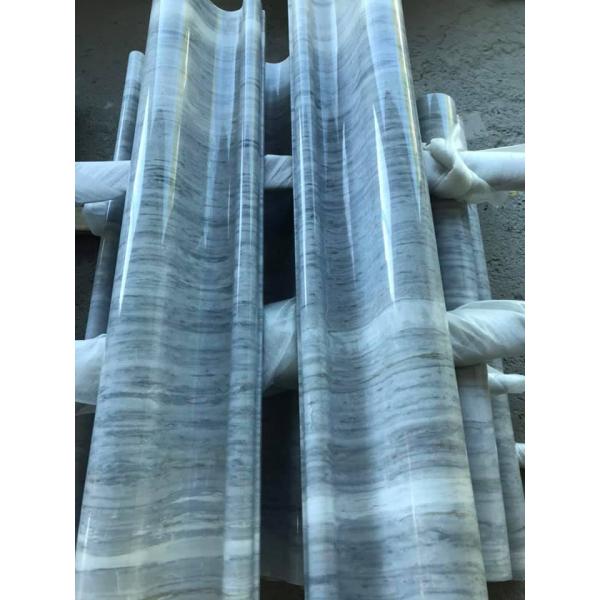

  • Square balusters
  • Special-shaped kerbstones

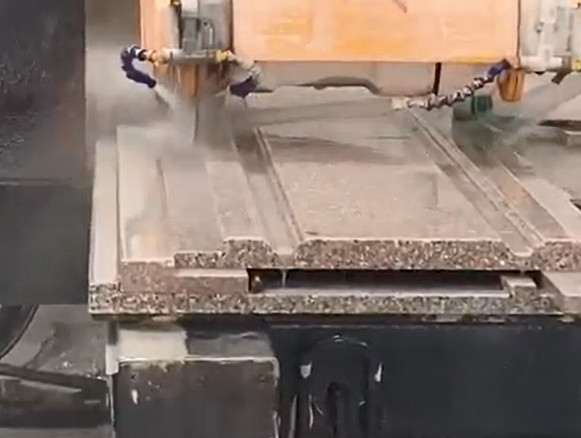

One-pass sequence: rough cut → fine cut → finish mill with 3-axis CNC control and zero-backlash linear-guide + ball-screw motion.

2. Technical Specifications

ParameterUnitBLMM-1800BLMM-1800-2D
Blade diametermm350-600350-600
Max lifting travel of cutting framemm450450
Worktable Sizemm1800*35001800*3500*2PC
Max processing lengthmm35003500
Main motorkw15/18.5 (Optional)15*2/18.5 *2(Optional)
Gross motorkw21/24.5 (Optional)40/47 (Optional)
Outline dimensionmm5300*3950*25505800*5300*2550
Water Consumptionm³/h66

2. Key Equipment Features
3-Axis CNC Control
4-Blade Bridge Array
Guide-Pillar + Copper-Bush Lifting
Linear-Guide + Ball-Screw Feed
Heavy Bridge Frame
High-Stroke Z-Axis

CNC System & Software

  • Controller: CNC 3-axis
  • Screen: 15″ touch
  • Programming:
    • Import .dxf, .stp
    • Parametric kerb & baluster wizard
    • Teach-in for one-off artistic shapes
  • Functions: tool-life monitor, collision guard, remote VPN diagnostics

Package, Delivery & Warranty

  • Package: Steel-frame + plywood crate, export standard
  • Delivery: 25–30 days (standard), 35 days (custom)
  • Installation: 3-day on-site commissioning + operator training
  • Support: 24/7 hotline, global spare-parts hub


Customer Success Cases

“Four-blade layout doubled our kerbstone output while cutting labour by half. ROI in 14 months.”
Eastern European Road-Stone Supplier
