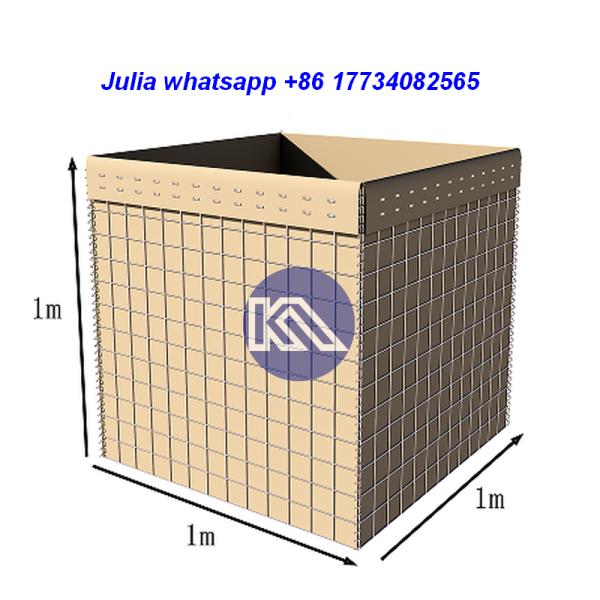

Supplier Of Long Life UV Resistant Geotextile Material Earth Filled Defensive Barriers For Army Defensive Barrier Wall
Introduction of Defensive Barrier :
Explosion proof cage, also known as explosion-proof wall, lock buckle sandbag, flood prevention wall, is a new product that is assembled from welded gabion mesh and geotextile. It can hold fine sand, soil, and stones instead of traditional military bunker sandbags, and can be recycled.Features of explosion-proof cage and explosion-proof wall products: The explosion-proof cage system is designed with foldable packaging that is easy to transport, has strong mobility, is easy to install, has outstanding effects, and is conducive to recycling
Defensive barrier wall is a prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.
Defensive Barrier Features :
1. A pre-fabricated gabion of galvanized welded mesh steel fitted
with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small
stones.
4. It can be used together to any length, and can be stacked for
additional height.
Specification of Defensive barrier :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be
produced as requested.
4) geotextile: in non-woven geotextile,color can be
green,beige-sand color.
HESCO BARRIERS Specification
| Model | Height | Width | Length | Internal Cells |
| KN-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| KN-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| KN-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| KN-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| KN-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| KN-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| KN-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| KN-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| KN-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| KN-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| KN-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| KN-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and
parks.
2. or high salt pollution in the environment, Gore can be used
where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural
cobblestone highway together protection, slope, roadway, bridge and
so on.
4. welded wire mesh is widely used in earth or soil reinforcement
such as desertification, slope protection, river, coastal
protection, reservoirs, canals and pipelines renovation, Rock
failure protection, bridge protection, protective net.
How to install?
it is easy to install
1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed
length
3. Fill soil, sand or gravel into the container. The common machine
is front end loader.
4. Compact the content
5. Add layers if required.
|
