| Categories | Capsule Slip Ring |
|---|---|
| Brand Name: | GUREN |
| Model Number: | WX8.5-8PS |
| Certification: | ISO9001.CE.ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | ＄19-199 |
| Payment Terms: | D/A,D/P,T/T |
| Supply Ability: | 5K units/week |
| Delivery Time: | 3 weeks ARO |
| Packaging Details: | Standard/On Request |
| Outer Diameter: | 8.5mm |
| Weight: | 72g |
| Max Speed: | 100RPM per minute |
| Breakaway Torque: | 8 mN·m |
| Running Torque: | 0.5 mN·m |
| IP Rating: | IP40 |
| Company Info. |
| Shenzhen Guren Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Outer Diameter | 8.5mm |
| Weight | 72g |
| Max Speed | 100RPM per minute |
| Breakaway Torque | 8 mN·m |
| Running Torque | 0.5 mN·m |
| IP Rating | IP40 |

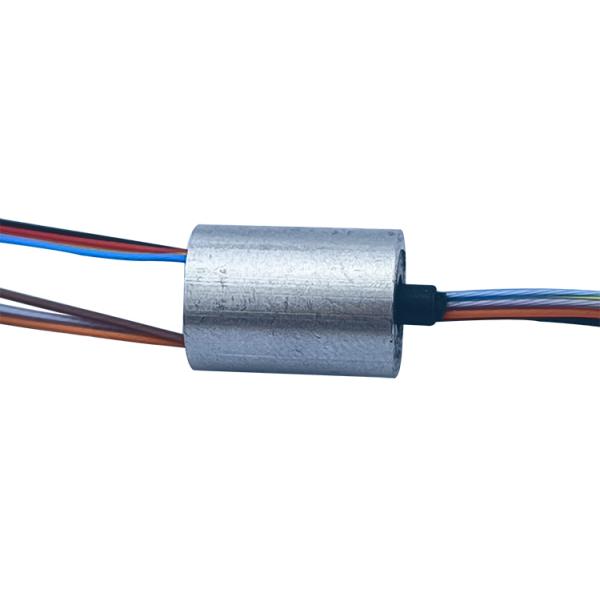

The WX8.5-8PS low-power micro electric slip ring is only 13.8mm long and can be easily embedded in the narrow cavity of commercial equipment. The gold-gold contact can effectively ensure the signal transmission without attenuation, and the low torque of 0.06N*m reduces the motor energy consumption by 30%.
| Parameter Name | Parameter Value |
|---|---|
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥300MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30# Teflon wire |
| Wire length | Rotor 150mm; stator 200mm (adjustable as required) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP41 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 500,000 rpm |
|
