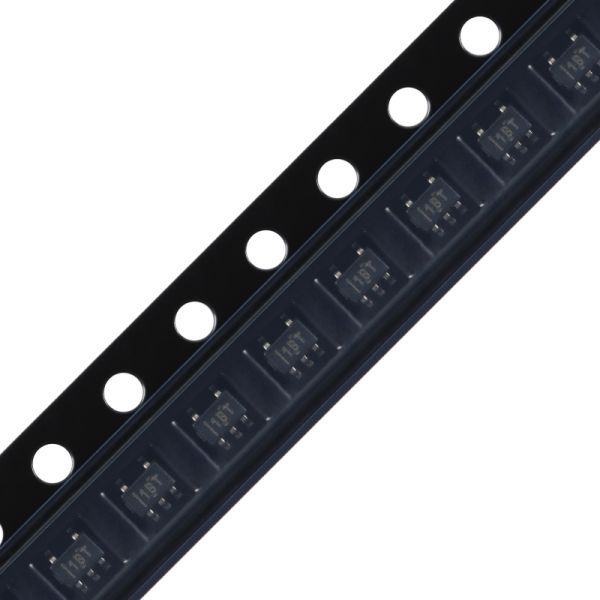

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

Categories Electronic Components
Brand Name: TI
Model Number: TMP236A4DCKR
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T
Supply Ability: 1000
Delivery Time: 5-8DAY
Packaging Details: T/R
Certification: ROHS
Operating temperature range (°C): -10 to 125
Rating: Catalog
RoHS: Yes
REACH: Yes
Lead finish / Ball material: Sn | NiPdAu | NiPdAuAg
MSL rating / Peak reflow: Level-1-260C-UNLIM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

Features

  • Cost-effective alternative to thermistors
  • Tight accuracy across a wide temperature range:
    • ±2.5°C (maximum): –40°C to +150°C (TMP235)
    • ±2.5°C (maximum): –10°C to +125°C (TMP236)
  • Available in two accuracy level variants:
    • A2 level: ±0.5°C (typical)
    • A4 level: ±1°C (typical)
  • Positive slope sensor gain, offset (typical):
    • 10 mV/°C, 500 mV at 0°C (TMP235)
    • 19.5 mV/°C, 400 mV at 0°C (TMP236)
  • Wide operating supply voltage range:
    • 2.3 V to 5.5 V (TMP235)
    • 3.1 V to 5.5 V (TMP236)
  • Short-circuit protected output
  • Low power: 9 μA (typical)
  • Strong output for driving loads up to 1000 pF
  • Available package options:
    • 5-pin SC70 (DCK) surface mount
    • 3-pin SOT-23 (DBZ) surface mount
    • Footprint compatible with industry-standard LMT8x-Q1 and LM20 temperature sensors

Applications

  • Grid infrastructure
  • Wireless and telecom infrastructure
  • Automotive infotainment
  • Factory automation and control
  • Test and measurement

PART NUMBER PACKAGE BODY SIZE (NOM)

PART NUMBERPACKAGEBODY SIZE (NOM)
TMP235,TMP236SC70 (5)2.00 mm * 1.25 mm
SOT-23 (3)2.92 mm * 1.30 mm
