Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media ConverterProduct Details

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Overview

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P60 Series is easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter ordering information

Model	Description
LNK-IMC3011P60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P60S-20	Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

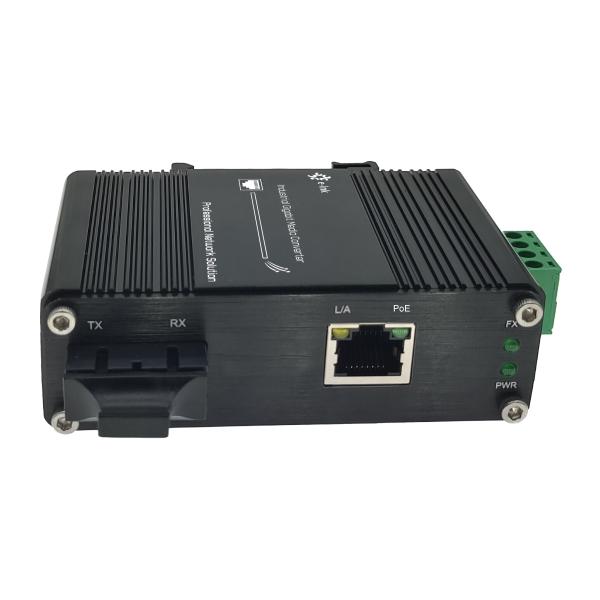

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter 0

Product Tags:


*From:	Your email address is incorrect!
*To:	E-link China Technology Co.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Industrial Fiber Media Converter
Brand Name:	E-Link
Model Number:	LNK-IMC3011P60
Certification:	ROHS,FCC,CE
Place of Origin:	China
MOQ:	1 Pcs
Price:	$29.9-389
Supply Ability:	1000 Pcs/Month
Delivery Time:	3-12 Working Days
Packaging Details:	Converter Standard Export Package
Keywords:	Industrial Media Converter
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Weight:	0.25KG
Dimensions (WxDxH)::	95 X 70 X 30 Mm
