Transformer Winding Deformation Tester with FRA Technology

Advanced Cable Fault Locator for Transformer Internal Winding Deformation Testing

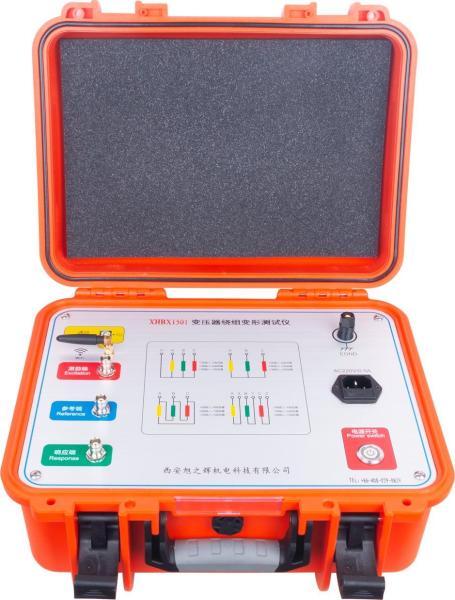

The XHBX1501 Transformer Winding Deformation Tester utilizes advanced frequency response analysis (FRA) technology to accurately assess transformer internal winding conditions. By measuring characteristic parameters across different frequency domains, this instrument quantifies winding response changes to determine deformation severity, enabling precise evaluation of whether transformers require maintenance or repair.
Technical Specifications
Test Speed1-2 minutes per phase winding
Sweep Test Range100Hz - 2MHz
Amplitude Test Range-100dB - 20dB
Signal Output Impedance1MΩ
Signal Output Voltage50Ω
Instrument Dimensions310×400×330mm (aluminum case)
Scanning Frequency Accuracy0.005%
Key Features
High-speed microprocessor control with advanced integration
Dual communication options: USB port and optional Bluetooth connectivity
Precision DDS digital frequency sweeping technology for accurate fault diagnosis
High-speed dual-channel 16-bit A/D sampling system
Software-adjustable signal output amplitude (±10V peak)
Automatic test result analysis with Word document generation
Dual measurement systems: linear and segmented sweep frequency
Flexible frequency display options (linear or logarithmic indexing)
Comprehensive data analysis with phase comparison capabilities
Full compliance with DL/T911-2004 power industry standards
Diagnostic Capabilities
The instrument accurately identifies various winding deformations including twisting, bulging, displacement, tilting, inter-turn short circuits, and phase-to-phase contact faults. Its advanced analysis system enables both horizontal comparison between phases (A-B-C) and longitudinal comparison of current data against baseline measurements.
