Industrial Grade Outdoor LCD Touchscreen Monitor 27/32/43/49/55/65/75/86 inches Display High Brightness With Optical Bonding

Categories Outdoor LCD Display
Brand Name: ITD/OEM
Model Number: ITD32CMODIPWXX
Certification: CE, FCC, RoHS Compliance
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, PayPal(173515844@qq.com)
Input Port: HDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O optional.
LCD Panel: 32'' LCD panel
Power Connector: 180-264V, 50/60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

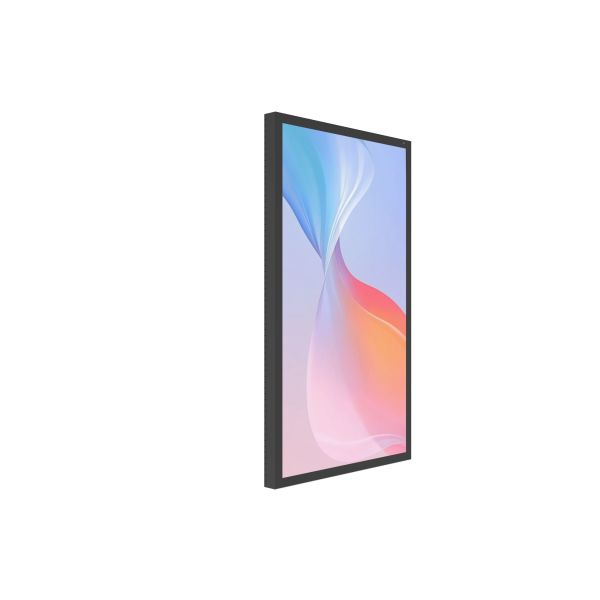

Industrial Grade Outdoor LCD Touchscreen Monitor 27/32/43/49/55/65/75/86 inches Display High Brightness With Optical Bonding

· INTRODUCTION:

32'' High Brightness Outdoor LCD Display

BENEFITS:

· High Brightness LCD Screen with Optical Bonding

LCD backlight brightness 2000-5000nits. Meets the best viewing requirements under direct sunlight. Optical bonding improves display readability, durability, and touch accuracy by eliminating the air gap between the screen layers.


· Intelligent Brightness Control

Automatically adjust the LCD screen brightness according to the ambient light brightness to save energy to the maximum extent.


· Industrial Grade Panel

The LCD panel uses wide temperature LCD. It does not blacken under direct sunlight.


· Polarized Sunglasses Visible

LCD panel uses QWP technology to improve visibility. Wearing polarized sunglasses does not affect vision.


· IP65 Waterproof Fan

Full lamination process is used on the front of the screen. Integrated backlight behind the screen Protection grade IP65


· Industrial Design Ultra-Thin Body

Narrow border ultra-thin design supports horizontal and vertical screens.Fully sealed design supports various interface expansions. The surface meets outdoor protection requirements.


Specification


ModelITD32CMODIPWxxITD43CMODIPWxxITD49CMODIPWxxITD55CMODIPWITD65CMODIPW
PanelSize32"43"49"55"65"
Panel TechnologyIPSIPSIPSIPSIPS
Aspect Ratio16:916:916:916:916:9
Resolution1920×10801920×10801920×10801920×10803840×2160
Brightness2000~3000nits2000~4000nits2000~5000nits2000~5000nits2000~4000nits
Contrast Ratio1200:11200:11200:11200:11200:1
Viewing Angle178/178178/178178/178178/178178/178
Surface TreatmentHaze 3%Haze 3%Haze 3%Haze 3%Haze 3%
Lifetime50000Hrs50000Hrs50000Hrs50000Hrs50000Hrs
Display ModeHorizontal/VerticalHorizontal/VerticalHorizontal/VerticalHorizontal/VerticalHorizontal/Vertical
Physical AppearanceColorBlackBlackBlackBlackBlack
MaterialAluminum,Galvanized Steel Sheet
Surface TreatmentOutdoor Powder Spraying
Outline Dimension763×457×95.5mm1014×602× 95.5mm1147×677× 95.5mm1282×753× 95.5mm1500×875× 95.5mm
N.W.19kg28kg36kg38kg65kg
Package Dimension860×560×220mm1120×700× 220mm1250×800× 220mm1400×870× 220mm1600×980× 220mm
G.W.26kg36kg44kg48kg75kg
Mounting HoleVESA670×300mmVESA900×400mmVESA1075× 400mmVESA1200× 400mmVESA1400× 400mm
Operation EnvironmentOperating Temperature-20--50℃-20--50℃-20--50℃-20--50℃-20--50℃
Operating Humidity10%--85%10%--85%10%--85%10%--85%10%--85%
IP levelIP65IP65IP65IP65IP65
Protective Glass5mm Ultra-Clear Glass5mm Ultra-Clear Glass5mm Ultra-Clear Glass5mm Ultra-Clear Glass5mm Ultra-Clear Glass
PowerInput180-264V, 50/60Hz180-264V, 50/60Hz180-264V, 50/60Hz180-264V, 50/60Hz180-264V, 50/60Hz
Max. Power Consumption160W220W240W280W480W
MainboardProcessorARM Based RK3288/RK3568/RK3576/RK3588, x86 Based Intel Celeron J1900/J6412 or Intel Core i3/i5/i7 optional
InterfaceHDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O optional.
Optional75”, 86” optional(3840×2160, 2000~4000nits, 1200:1, 178/178, etc.)
