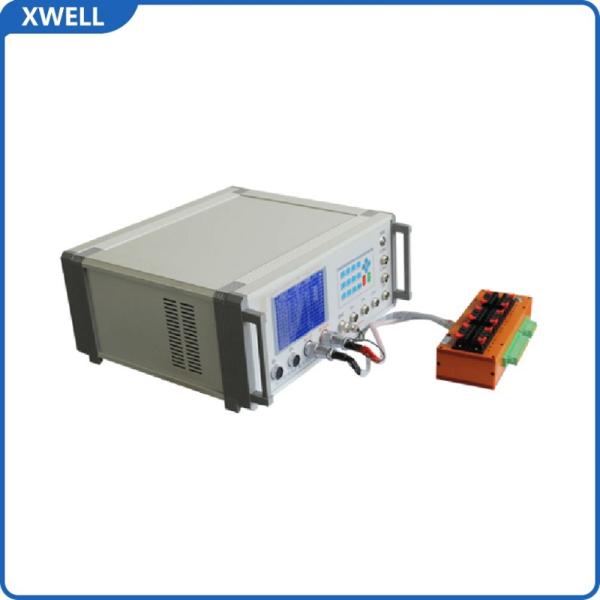

Lithium Battery Pack 1-24 Series Protective Plate PCB Tester

3 Types of protection boards supporting the test: LiFePO4,LiMn2O4,LiCoO2

3. Technical Parameter

3.1 High current module: The current level is 120A and the current accuracy is 0.1A.

3.2 Voltage module: Voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy

5mV.

3.3 Short circuit module: Super capacitor, which fully simulates the pack battery voltage,

instantly short circuits the protection board, and accurately captures the short-circuit time and

current.

Specication:

Test Items	Test Scope	Accuracy
Number of test series	1-24 series
Reference voltage	LiCoO2(3.8V) LiFePO4(3.0V)
Overcharge protection voltage	0.5-5V	±5mV
Over discharge protection current	1-120A	±0.1A
Equalizing opening voltage	0.5-5V	±5mV
Over discharge protection delay	0-20S	±1mS
Short circuit protection (More than 6 series)	0-9999us	±1uS
Application	All hardware scheme protection boards and some software boards in the market (Special test items need to be communicated)

Picture:
