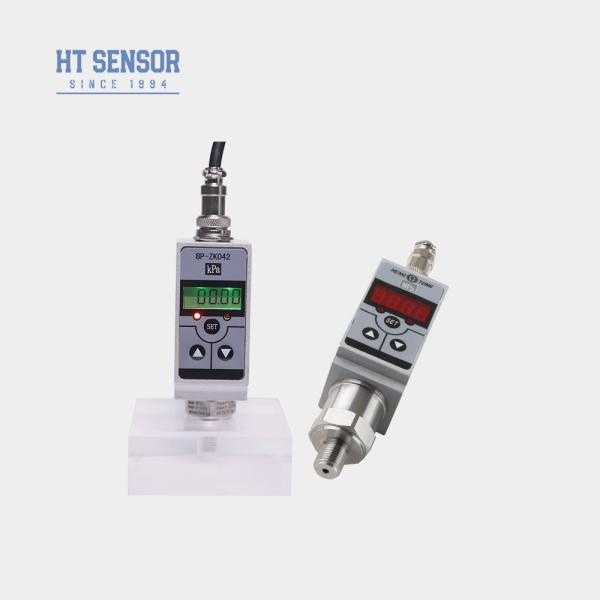

Pressure Switch With 2 To 4 Point Controller And 4-20mA Electronic
Pressure Switch
BPZK Electronic Pressure SwitchIntroduction:BPK-ZK electronic pressure switch is a fully digital measurement and control product that integrates pressure measurement, point control
display, and transmission output. It can be directly installed at the pressure
measurement point in the field or on the control screen of the test bench. It
allows on-site setting of parameters such as zero value, full-scale value, and
contact pressure value using the keypad.
- Stainless steel structural design with versatile pressure interface
options.
- with high-brightness LED pressure display.
- Powered 24VDC.
- Can provide up to two control relay outputs, with the ability to
set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications:Measurement and control of pressure/differential pressure of fluid
media in industries such as hydropower, metallurgy, and chemical
engineering, for automatic control applications.
| Performance Parameters |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential
Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.3kg |
| Outline Construction |
| Dimension |  |
1.When choosing a product, please ensure that the medium to be
measured is compatible with the contact parts of the product.
2.When placing an order, please specify the power supply, accuracy
grade, number of control points, and whether it is equipped with an
RS485 interface.
3. The measurement range of the flat diaphragm pressure controller
is 0 to 35 kpa... 20MPa.
4. For users who choose differential pressure measurement, it is
necessary to pay attention to the relationship between the
differential pressure range and the allowable overpressure and
maximum pressure of the high and low pressure chambers, and ensure
that it meets the requirements of on-site application. To ensure
the safe and reliable operation of the product, it is recommended
to install a three-valve manifold between the measurement point and
the transmitter.
5. To ensure the reliable operation of the product, it is
recommended to install lightning protection devices on site and
ensure that the product and power supply are reliably grounded. In
case of special requirements such as strong vibration,
instantaneous impact force, strong electromagnetic interference,
radio frequency interference, etc., please inform our company and
specify them in the order.
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance.
Customization available.2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling
.4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term
partners
.6.Q: What is the warranty of your products? And after-sales
service?
A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
