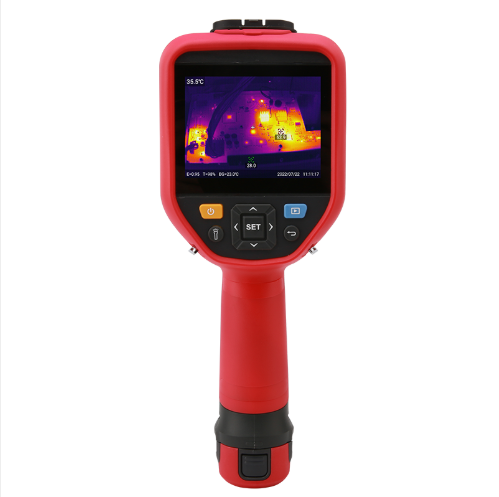

CDI384G Touchscreen Adjustable-focus Infrared Thermal Imager

CDI384G Touchscreen Adjustable-focus Infrared Thermal Imager

1. Product Overview

The CDI384G handheld manual focusing infrared thermal imager offers a 3.5" touch display during imaging, making your work more convenient. The wide temperature measurement range caters to more usage scenarios. The features of center-point temperature measurement, automatic tracking of high and low temperatures, customizable analysis objects, and custom-defined temperature limits for isotherms make it easier to quickly identify anomalies or the areas you want to observe. In addition to the powerful functions on the device itself, it is also equipped with real-time image transmission and post-image analysis processing via mobile phone and PC software.

2. Product Features

(1) Full Infrared Resolution: 256x192 (UTi256G), 384x288(UTi384G)
(2) Full Phone APP/PC Software: Enables infrared image analysis and video connection
(3) Image Modes: Visible Light, Fusion, Picture-in-Picture, Infrared
(4) Internal Storage: 8GB / External Expansion: Max. 32GB TEE
(5) Temperature Measurement Range: -20 °C to 550 °C
(6) Video Recording Function (Only UTi384G)
(7) LED Fill Light / Laser Pointer

(8) Removable Lithium Battery

(9) Visible Light: 0.3M Pixels (640×480)

(10) Center Wavelength: 8–14 µm

(11) Spectral Band: 8–12 µm

(12) Field of View: 56°×42°

3.Main Technical Data
