| Categories | 2960 Switch |
|---|---|
| Brand Name: | Cisco |
| Model Number: | WS-C2960XR-24TS-I |
| Place of Origin: | Beijing, China |
| Packaging Details: | New and unopened |
| Supply Ability: | 50 Ampere/Amperes per Day |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Delivery Time: | 2-3 working days |
| Model: | WS-C2960XR-24TS-I |
| Ports: | 24 10/100/1000 Ports |
| Private Mold: | NO |
| Switch Capacity: | 216Gbps |
| Function: | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Condition: | NIB |
| Warranty: | 1 Year |
| Shipping: | DHL UPS FEDEX |
| Lead time: | 3~7 Days |
| Company Info. |
| Beijing Lianmai Tongchuang Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description:

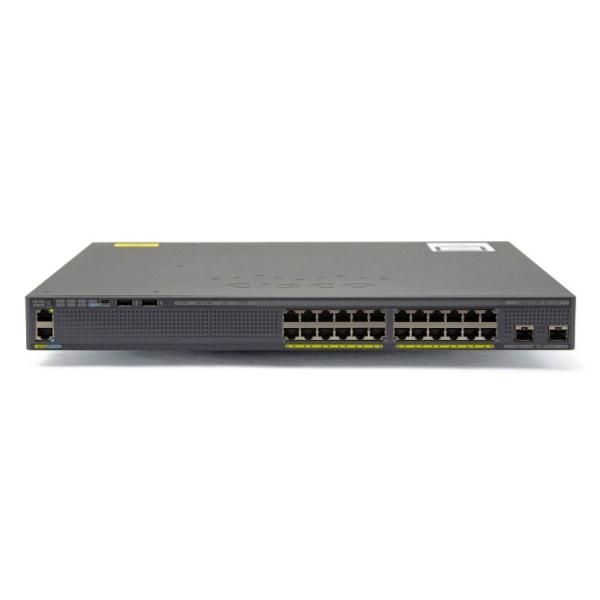

Cisco Catalyst 2960XR-24TS-I IP Lite Base layer 2 - 3 stackable switch is comprised of 24 x 10/100/1000 Ethernet ports and 4 x SFP uplink interfaces.
The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
Specifications:
Product | WS-C2960XR-24TS-I |
Product Description | Catalyst 2960-XR 24 GigE. 4 x 1G SFP. IP Lite |
Qty | 4 |
Type | 100Base-TX |
Connector Type | Type B |
Comments | Management |
Rack Mounting Kit | Included |
Compliant Standards | AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24,
CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, RoHS 2011/65/EU, UL 60950-1 Second Edition, VCCI Class A |
Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
MTBF | 557,320 hours |
Height (Rack Units) | 1 |
Connectivity Technology | Wired |
Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c,
SNMP 3, SSH, Telnet, TFTP |
Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE
802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Status Indicators | Link/activity, Port duplex mode, Port status, Port transmission
speed, System |
Ports Qty | 24 |
Routing Protocol | HSRP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing
(PBR), RIP-1, RIP-2, RIPng, VRRP |
Stackable | Stackable |
Max Units In A Stack | 8 |
Subcategory | Network hubs and switches |
Power Over Ethernet (PoE) | No |
Advanced Switching | Layer 3 |
Manageable | Yes |
Form Factor | Desktop, Rack-mountable |
Jumbo Frame Support | 9216 bytes |
Width | 17.5 in |
Depth | 16.1 in |
Height | 1.8 in |
Weight | 13.01 lbs |
Expansion / Connectivity
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 FlexStack-Plus slot and 1 power redundant slot |
| Stack Modules | C2960X-STACK |
| Stacking cable | ● CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length ● CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length ● CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length |
| Power supply | PWR-C2-250WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.038kVA |
System software / license
| System software | IOS IP Lite |
| license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| features | ● IP unicast routing protocols (Static, Routing Information
Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub) ● Advanced IP unicast routing protocols (OSPF for Routed Access) ● EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite. ● Equal-cost routing ● Policy-based routing (PBR) ● Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) ● Protocol Independent Multicast (PIM) |
| Network security | ● MAC-based VLAN assignment enables ● Cisco TrustSec uses ● Comprehensive 802.1X ● IPv6 First-Hop Security ● Device Sensor and Device Classifier ● Cisco Trust Anchor Technology ● Cisco Threat Defense ● Private VLANs ● Unicast Reverse Path Forwarding (uRPF) ● Multidomain Authentication ● Access Control Lists (ACLs) ● Switched Port Analyzer (SPAN) ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● TACACS+ and RADIUS authentication ● MAC Address Notification ● Multilevel security on console access BPDU Guard ● Spanning Tree Root Guard (STRG) ● IGMP filtering |
| Management & Troubleshooting | ● Auto-MDOX ●TDR ● UDLD ● IP SLA Responder ● layer 2 / IP Traceroute ● SPAN ● RSPAN ● Express Setup ● Device Manager ● Cisco Network Assistant ● Smartports + Advisor ● Troubleshooting Advisor ● Drag-and-drop Cisco IOS Upgrade ● IP Address DHCP ● Autoinstall with saved configuration ● Configuration Replace ● DHCP Auto Image Upgrade ● DHCP Port Based Allocation ● Error Disable MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco Smart Care Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
