| Categories | Smart Digital Blackboard |
|---|---|
| Blackboard Size: | 86 Inch |
| Color: | 10bit,10.7billion colors |
| Storage: | 32GB |
| Processor: | I5/i7/i9 |
| Resolution: | 3840X2160 |
| Display area: | 1895.04X1065.96 mm (85.6 inch) |
| Input Voltage: | 180-260V AC |
| Brightness: | 350cd/㎡ |
| Viewing Angle: | 178 (H) / 178 (V) |
| Connectivity: | WiFi, Bluetooth, USB, HDMI |
| Accuracy: | 2mm |
| Ram: | 4GB/8GB/16GB |
| Display ratio: | 16:9 |
| Brand Name: | MTHGH |
| Model Number: | XYC-86 |
| Certification: | CE FCC ROHS ISO14001 ISO45001 ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 Piece |
| Delivery Time: | 7-10 Work Days |
| Packaging Details: | Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread. |
| Dimensions: | ≥4200*1200（mm） |
| Contrast ratio: | 1200:1 |
| Size: | 75",86" |
| Touch response time: | <15ms |
| Mic: | 4/6/8 Array Mic Optional |
| Company Info. |
| Xingyicheng (Shenzhen) Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The 86-inch LCD interconnected smart blackboard represents the new generation of intelligent teaching solutions. This high-quality smart teaching blackboard combines advanced technology with practical classroom functionality.
Product size: 86 inches. This connected blackboard solves the limitation of traditional blackboards where writing cannot be saved. Designed to match teachers' writing habits, it features intelligent chalk writing storage that can be quickly activated on both sides of the blackboard with a single click.
The system supports one-click sharing through shortcut keys. The main screen utilizes infrared technology to enable multi-touch functionality. It can be equipped with a built-in 1300-pixel high-definition camera and omnidirectional 8-array noise reduction microphone, making it ideal for creating versatile, multi-functional classrooms.
| Product Model | XYC86 |
|---|---|
| Panel Type | DLED |
| Resolution | 3840×2160 |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 1200:1 |
| Display Area | 1895.04×1065.96 mm (85.6 inch) |
| Display Ratio | 16:9 |
| View Angle | 178° |
| Color | 10bit, 10.7 billion colors |
| Android System | 11.0/13.0 |
| ROM EMMC | 32G |
| RAM DDR3 | 4G |
| Touch Response Time | <15ms |
| Input Ports | Rear: HDMI 2.0 ×2; VGA ×1; Audio×1; USB 3.0 ×1; USB 2.0×1, RJ45 ×1,
SD CARD ×1; AV-IN×1; YPbPr ×1; RS232 ×1; USB Touch Port (B)×1;
Wifi×1, DP ×1 Front: 1×HDMI, 1×TOUCH USB, 3× USB, 1×Type-c |
| Output Ports | Rear: AV-out×1; HeadPhone×1; SPDIF×1; HDMI ×1 |
| Front Buttons | 11KEY (POWER, SOURCE, MENU, VOL+, VOL-, CH+, CH-, PC, ES, ENTER, HOME) |
| Rating Voltage | AC(100-240)V～50/60HZ |
| Rating Power | 3.5A |
| Work Temperature | 0°C～40°C |
| Touch Points | 20 |
| Touch Object | Finger or pcap pen |
| Touch Technology | Capacity |
| Accuracy | <2mm |
| Continuous Response Time | <8ms |
| Cursor Speed | >240 dot/s |
| Touch Interface | USB |
| Touch System Support | WINDOWS /LINUX/MAC /Android |
| Touch Times | Same position more than 60,000,000 times |
| Accessories | Touch pen × 1, Touch USB(1.5M) × 1, Power cable(1.8M) × 1, Remote controller × 1 |
| Product Dimension | 4200×1306.5×127.6mm |
| Package Dimension | 2172×280×1457mm ×1, 1250×235×1427mm×1 |

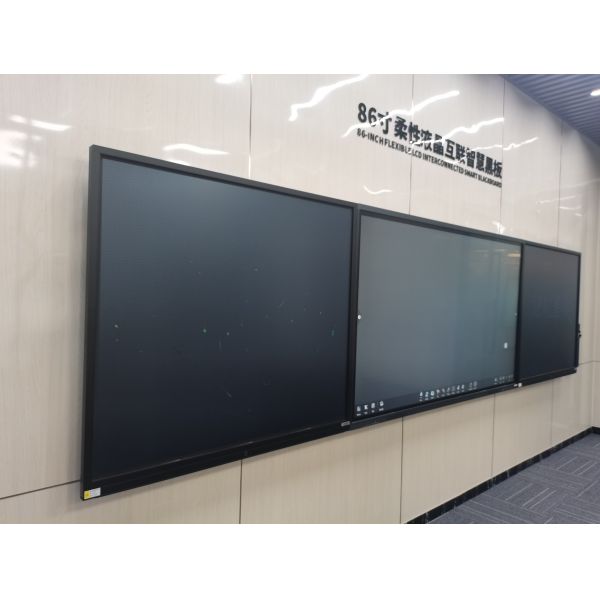

The following are real pictures taken on site, which are more beautiful when viewed on site.
Xingyicheng Technology is a leading manufacturer for interactive touch products whose products cover interactive whiteboard, interactive flat panel, touch display, advertising touch display, conference touch display, projectors for education and business applications.
Yes, we do. Including appearance, size, color, button, system, logo, etc. The customization process is as follows:
Interactive whiteboard, smart blackboard, advertising screen, digital signage, OPS PC, etc.
|
