Bluesun Solar BSM460M-72HBD Half Cell 460W 455W Bifacial Double Glass Solar Panel in USA Stock

Categories 166mm Solar Panels
品牌: Bluesun
型号: BSM460M-72HBD
原产地: Bangkok, Thailand
电池片尺寸: 166mmx166mm
类型: 打击乐, 半电池, 异面, 双层-玻璃, 光伏建筑一体化
尺寸: 2094*1038 * 35mm(82.44*40.87*1.18英寸)
组件效率: 21.2%
上市融资: Goodleap,马赛克
列出的货架: Ecofasten, Ironridge, PanelClaw
框架: 阳极氧化铝合金
前玻璃: 2.0毫米 (0.08英寸) AR涂层半Tempred玻璃
背面玻璃: 2.0毫米 (0.08英寸) 半Tempred玻璃
接线盒: IP68 3旁路二极管
电缆截面尺寸: 12AWG
包装配置: 36pcs/托盘,648pcs/40HQ
证书: ETL/CEC (加利福尼亚)/FSCE (佛罗里达)
保修期: 30年
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bluesun Solar BSM460M-72HBD Half Cell 460W 455W Bifacial Double Glass Solar Panel in USA Stock

Products Description
Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.
Electrical Characteristics
Model Number
BSM440M-72HBD
BSM445M-72HBD
BSM450M-72HBD
BSM455M-72HBD
BSM460M-72HBD
Maximum Power (Pmax/W)
440
445
450
455
460
Open Circuit Voltage (Voc/V)
49.2
49.4
49.6
49.8
50.0
Short Circuit Current (Isc/A)
11.4
11.47
11.54
11.61
11.68
Voltage at Maximum Power (Vmp/V)
40.5
40.7
40.9
41.1
41.3
Current at Maximum Power (Imp/A)
10.87
10.94
11.01
11.08
11.15
Module Efficiency(%)
20.24
20.47
20.70
20.93
21.16
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5
Who Buy From Bluesun

* Warehouse in USA

* Factory in Thailand

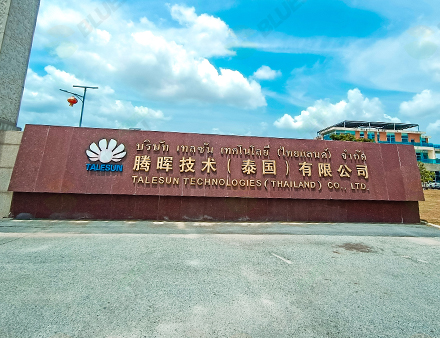

* Talesun Solar Hands with Bluesun Solar for USA Market

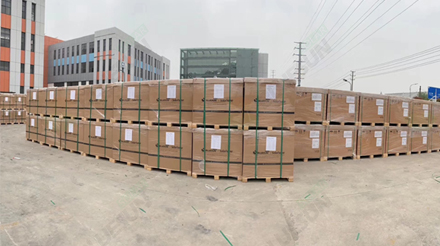

* 158mm&166mm Solar Panels are in Stock

Ready to Deliver at Any Time

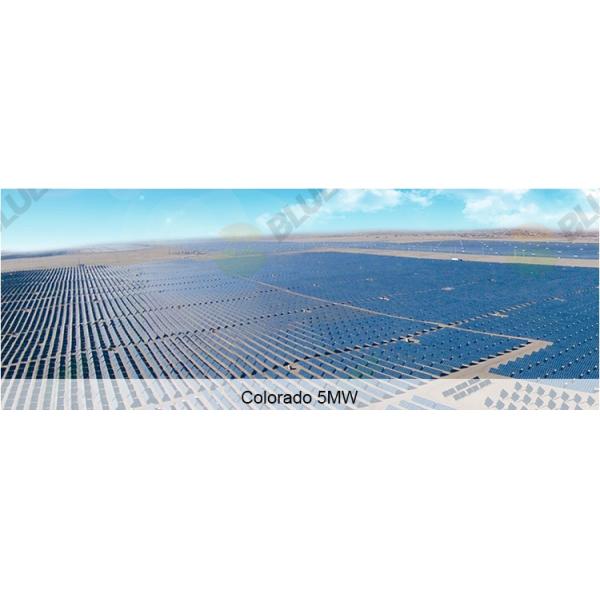

Bluesun Projects in USA
USA Exhibition
