| Categories | Micro Metal Gearmotor |
|---|---|
| Brand Name: | XM-Motor |
| Model Number: | Micro Metal Gear motor VSM15-816G |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 10000PCS |
| Price: | 1~10 USD/PC |
| Payment Terms: | T/T,D/P,L/C |
| Supply Ability: | 100000PCS/MONTH |
| Delivery Time: | 35DAYS |
| Packaging Details: | CTN OR CUSTOMIZED |
| size: | standard |
| packing: | CTN or customized |
| motor: | stepper motor |
| phase: | 2~4 |
| stepper motor: | 4 wire stepper motor |
| high torque: | small stepper motor high torque |
| Construction: | PM |
| Name: | Micro Metal Gearmotor |
| Voltage: | 5V |
| color: | customized |
| Company Info. |
| Changzhou Xingmai Motor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Type | Gear Motor | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Continuous Current(a) | Customized |
| Certification | ROHS | Voltage(v) | 5V |
| Output Shaft | Customizable | Reduction Ratio | Customizable1:3~1000 |
| Directions | CW/CCW | Step Angle | 18 Degree |
| Highlight | miniature dc gear motor,micro electric motor | ||

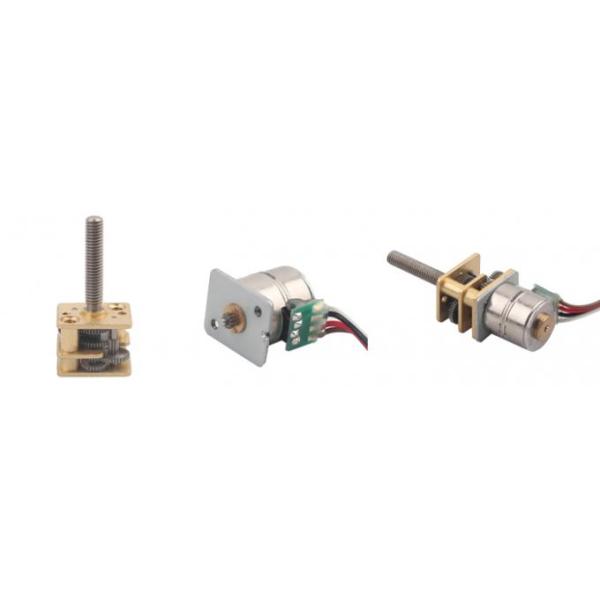

SM10-816G is the use of diameter 10MM micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn,
plus the deceleration box deceleration effect, the final motor
rotation angle resolution can reach 0.05~6 degrees, can be used in
many requirements.
Precise control of the rotating position of the field.
1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 1:500 and so on,
the customer can according to different use torque speed
requirements to match the speed ratio, at the same time.
Given the proper driving frequency of the stepper motor can reach
the determination of the speed and torque.
This product gear box uses the most advanced equipment in the
international processing related parts, so the high precision, high
efficiency, low noise, and the use of reasonable and reliable
process, make the product has better reliability.
The power input part and standard stepper motor can be used as
probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output
structure, such as the circular axis, D axis, and the wire rod!
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | VSM10-816G |
| RESISTENCE | 39Ω±7% |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
The regular models are shown in the figure, and the special sizes can be customized.
|
