Professional Permanent Laser hair removal Device

Categories 808nm Diode Laser System
Brand Name: QM Medical
Model Number: QM-808
Place of Origin: China
MOQ: 1set
Payment Terms: T/T, Western Union
Price: USD 2000/Set
Supply Ability: 200 sets per month
Delivery Time: 3-7 working days
Packaging Details: aluminum box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

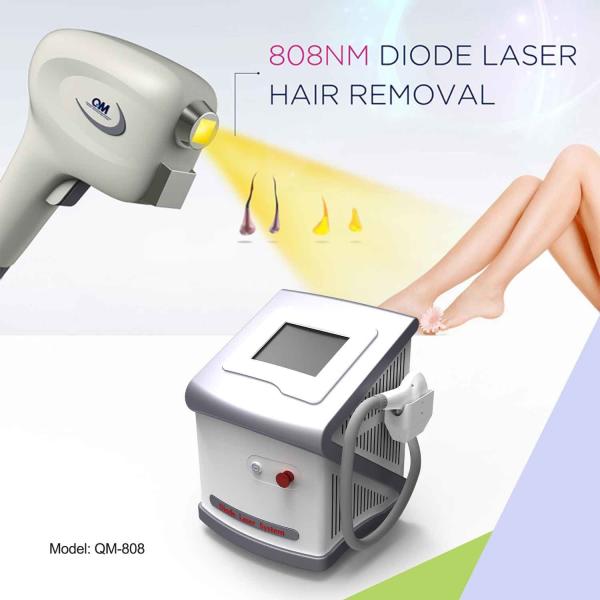

Professional Permanent Laser hair removal Device

Model:QM-808


Professional Permanent Laser Hair Removal Device

2021 top selling Diode Laser model

808nm and Triple wavelengths(755nm+808nm+1064nm) for option!


Applications:


For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini, legs and etc.

(including light, blond and thin hairs)


Working Principle:

Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue. Slight pain, easy operation, the most safe, technology for permanent hair removal now.

It is performed using gold standard 808nm diode laser technology, with energy penetrates deep into the dermis with high average power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair follicle, rather than destroy the oxygen organization around hair follicle.

Meanwhile, contacting surface cooling technology applied on the Sapphire Dual-Chill Tip can eliminate the heat effect attributed to optical energy, greatly improving both the treatment performance and safety.


Specialty of QM-808:

** New Medical and Elegant design


** German Laser Emitter achieve fantastic result and last long lifetime!


** Handpiece Specifications:


Technical Specifications:

Laser TypeDiode Laser
Laser Stacks Power600W
Wavelength (Spectrum)808nm
Energy Density (Fluence)166J/cm² (Continuously adjustable)
Spot Size15x15mm²
Dual Chiller spot size25*25mm²
Pulse Repetition Rate1-10Hz
Pulse Duration10-400ms
PulsesSingle

Cooling

• Continuous Sapphire contact cooling(-5℃~1℃)
• Air cooling

• Closed water circulation cooling

Stand-by WorkingContinuously for 20 hours
Display10.4" True Color LCD Touch Screen
Electrical Requirements110/230VAC, 15/20A max., 50/60Hz
Net Weight45kgs
Dimensions (WxDxH)450*550*680 mm
