Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film

Teraoka 631S #12 #25 #100 Polyethylene film tape Electrical insulation tape

Product Description:

• The 631S series is an insulating tape that has acrylic adhesive coated on a polyester film.

Product Features:

• High adhesion

• Soft and comfortable

• Remove without leaving any remaining adhesive residue

Product Applications:

• The outer and inner insulation of the transformer

• Insulation and fixation of electronic components: LCD liquid crystal display, lithium-ion televisions, computers, copiers, fax machines, telephones, DVDs, instruments and meters

PRODUCT PARAMETERS

	#12	#25	#100
Thickness(MM)	0.03	0.05	0.15
Color	Transparent, White, Blue, Green	White, Black, Blue, Red, Yellow, Green, Transparent	Transparent
Width(MM)	1000	1200	1200
Length(M)	50	30 , 50	20
Peel adhesion (N/25mm)	8.58	12.26	23.29
Tensile strength(N/25m)	39.2	95.6	343
Elongatio(%)	80	80	80
Breakdown voltage(KV)	4	6	14.6
Standards and Certifications	UL temperature class 130°C	UL temperature class 130°C UL746A CTI≧600V	-

Note:

The #12 and #25 are also ideal for use in winding as it is hard for the terminal to peel off

#100 is suitable for insulating spacers

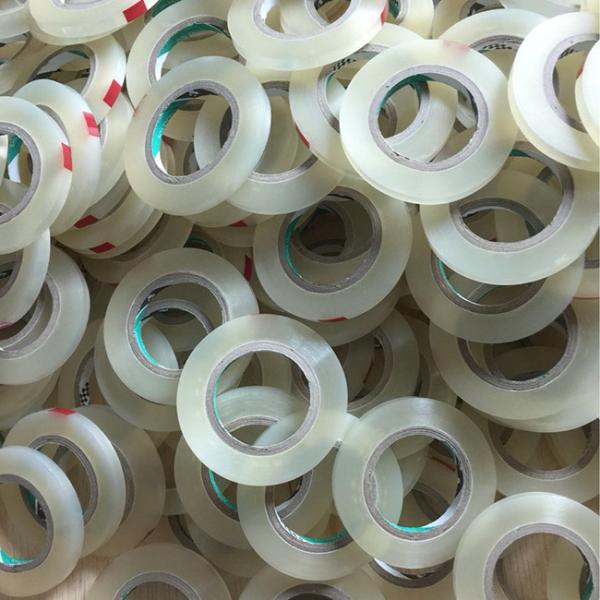

PRODUCT DISPLAY
