DFAC High Altitude Operation Truck 16m Aerial Work Platform Truck Euro 2

Categories High Altitude Operation Truck
Place of Origin: Hubei, China
Brand Name: DFAC
Packaging Details: Naked package
Supply Ability: 3000 Unit/Units per Year
Price: CN¥108,460.50-180,767.50/units
Transmission Type: Manual
Condition: New
Emission Standard: Euro 2
Fuel Type: Diesel
Dimensions (L x W x H) (mm): 5995*2000*3100mm
After-sales Service Provided: Video technical support, Online support, Free spare parts
Horsepower: < 150hp
Engine Capacity: < 4L
Fuel Tank Capacity: ≤100L
Port: SHANGHAI
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

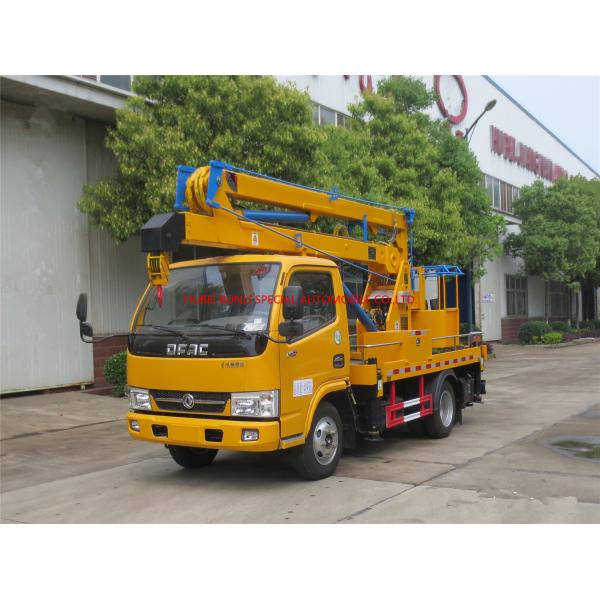

DFAC High Altitude Operation Truck 16m Aerial Work Platform Truck Euro 2

Basic information

Vehicle name

Aerial operation truck

Chassis model:

EQ1060TJ20D3

Overall dimension:

5995x2000x3100mm

Cabin:

Single row,A/C,central lock,

electric window,with radio,

safety belt,2 passengers

allowable

Drive type:

4X2

Curb weight:

4170Kg

Load capacity of F/R axles:

1600/2895Kg

Max. vehicle speed:

110kw/h

Engine

Model:

CY4102-C3F

Description:

In-line,4 cylinders,4 strokes,

water cooled,naturally aspirated

Fuel type:

Diesel

Horsepower:

70kw/95HP

Displacement:

3856mL

Emission level:

Euro 2

Parameter of chassis

Wheel base:

3300mm

Number of leaf spring:

8/9+5

Number of tyre:

6+1pcs

Specification of tyre:

7.00R16

Front/rear track:

1525/1498mm

Steering type:

LHD,power steering

Brake system:

Pneumatic brake

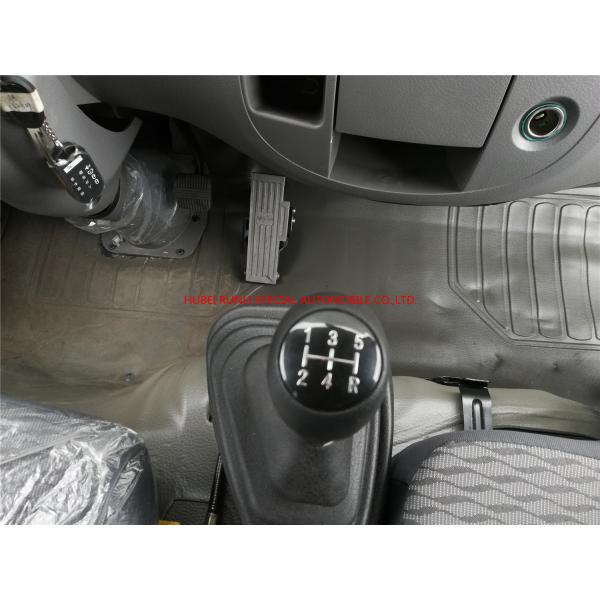

Gearbox:

Manual,5 forward & 1 reverse gears

Arm specification

Material thickness:

3-5mm

Arm quantity:

3PCS

Turn angle:

±360°continuous

Outrigger type:

H

Hanging basket

Rated load:

200Kg

Hydro-static leveling:

Provided

L X W X H:

1080x620x1100mm

Safety belt:

Provided

Hydraulic System

Cylinder

hydraulic valves:

With cylinder lock function

Electronic hydraulic proportional valve:

Provided

Emergency power source:

Provided

Speed control:

Provided

Anti-skid pattern steel plate:

Provided

Outrigger:

Individually controlled

Interlock:

Provided

Dangerous conditions alarm:

Provided

Max.hoisting weight:

1000KG

Max.working radius:

7m

Max.hoisting height:

8.4m

Max. working height:

16m


If need more detailed information,please feel free to contact me.
