| Categories | Armoured Electrical Cable |
|---|---|
| Brand Name: | QINGDAO YICABLE CABLE |
| Certification: | ISO,CE,IEC,TUV,KEMA |
| Place of Origin: | China |
| MOQ: | 500 Meters |
| Price: | US$0.45~112 per Meter |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10,000 KM / Month |
| Delivery Time: | 10 days |
| Packaging Details: | Drums |
| Cable Type: | Fire Resistant Armoured |
| Rated Voltage: | 1.1kV |
| Insulation: | XLPE/PVC |
| Conductor: | Copper |
| Armour: | Galvanized Steel Wire |
| Sizes: | 1mm2 ~ 630mm2 |
| Cores: | 1-5 Cores |
| Sheath Material: | PVC/ZR-PVC |
| Standards: | IEC / BS / IS / VDE |
| Warranty: | 2 years |
| Company Info. |
| Qingdao Yilan Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

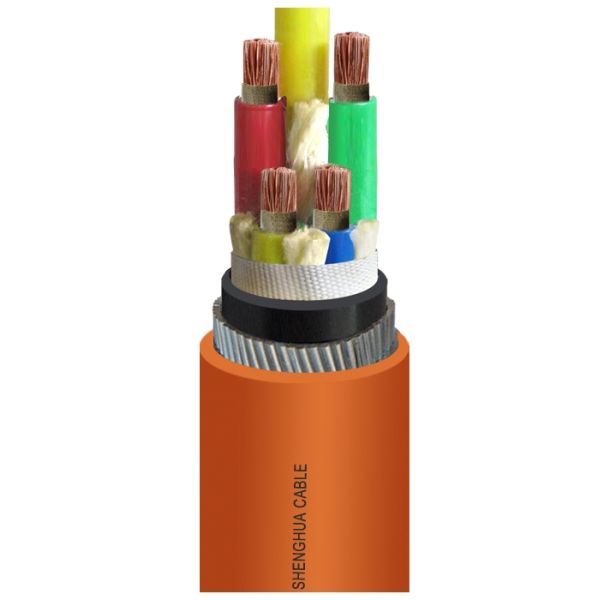

Construction:
1 ..... stranded (RM) bare copper
2 ..... Mica Tape for Fire Resistant
3 ..... core insulation of cross-linked polyethylene
4 ..... Fillers
5 ..... Wrapping tape or Flame Retardant tape
6 ..... PVC Inner Bedding
7 ..... Galvanized Steel Wire Armour
8 ..... outer sheath of polyvinylchloride (PVC)
Standards:
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
Technical data:
Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
| Type | Desciption | Rated Voltage | NO. of Cores | Nomibal section(mm2) | Applications |
| YJV YJLV | Cu or Al conductor,XLPE insulated.PVC sheathed electric cable | 0.6/1KV | 1,2,3,4 | 1.5 to 400 | For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces. |
| 3+1 | 3×4+1×2.5 to 3×400+1×185 | ||||
| 6/6kV | 1,3 | 25 to 500 | |||
| 8.7/10kV 8.7/15kV 12/20kV | 1 | 25 to 500 | |||
| 3 | 25 to 300 | ||||
| 21/35kv | 1 | 50 to 500 | |||
| YJV22 YJLV22 | Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable | 0.6/1KV | 3 | 1.5 to 400 | Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
| 4 | 4 to 240 | ||||
| 6/6kV 8.7/10kV 8.7/15kV 12/20kV | 3 | 25 to 300 | |||
| 21/35kv | 3 | 50 to 240 |
We are capable of meeting the most strict delivery schedules
according to per purchase order. Meeting the deadline is always the
top priority as any delay in the delivery of cable can contribute
to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils.
Cable ends are sealed with BOPP self adhesive tape and
non-hygroscopic sealing caps to protect the cable ends from
moisture. The required marking shall be printed with a
weather-proof material on the outsides of drum according to
customer's requirement.
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation
by heart.
2. Free pre-sales service. We will provide best proposal for each
client.
3. Good sales service. We will provide free relative product
operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship
with clients.
4. Thoughtful after sales service . Our product are warranted by
PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after
installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72
hours for other district.
6. 24 hours hot-line telephone service. We will appoint
professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
