Outdoor HD High Brightness LED Display Die-Cast Aluminum Screen 192mm X 192mm Module Size

Categories Outdoor Full Color LED Display
Brand Name: SCXK
Model Number: SCXK-P6
Certification: CE,ROHS ,FCC,UL
Place of Origin: China
MOQ: 5sqm can be available
Price: negotiation
Payment Terms: L/C, T/T, Western Union
Delivery Time: 5-8days
Packaging Details: the led display can be packaged with wooden box,paper box,flight case
module size: 192mm x192mm
pixel density: 27777dots/sqm
cabinet size: 960mm x 960mm
IC: MBI5124,MBI5024
control system: Nova star and linsn .3G ,U-DISK ,wifi
usage: video and picture usage
Power supply: Meanwell or chuanglian
warranty: 3 years warranty
Life usage: 10 years lifeuse
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Outdoor HD High Brightness LED Display Die-Cast Aluminum Screen 192mm X 192mm Module Size

SMD3535 Full color water-proof iron and steel cabinet fixing usage LED Billboards3 years warranty.


Quick details


1.Application

Widely use in stadiums, advertisement, banks, securities exchange, stations,

shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc


2.Market:


North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe


specification.


LED LampsTypeSMD3535(High Brightness LEDs)
LED StandardReal Pixel(1R1G1B)
Red Wavelength625-630nm
Green Wavelength515-530nm
Blue Wavelength465-475nm
LED ModulePixel Pitch6mm
Module Size192mm x192mm
Module Resolution32*32dots
LED CabinetCabinet Size960mmX960mm
Cabinet Resolution160pixels *160pixels
Cabinets MaterialSealed Iron Cabinet
LED DisplayPixel Density27777pixels/sq.m
Drive ICMBI5124
Power SupplySeries connection
Brightness>8000cd/sqm
Display Color16.7million
Viewing Angle160°(Horizontal),110°(Vertical)
Best Viewing Distance6m~200m
Max Power Consumption600 w/sq.m
Average Power Consumption300 w/sq.m
Weight40kgs/sq.m
Refresh Rate2000hz
Input VoltageAC220V/50H or AC110V/60H
Output VoltageDC5V,40A
Grey Scale Levels16bit
Display ColorsR(1024) x G(1024) x B(1024)
Life-span100,000 hours
Protection LevelIP65
Failure percentage of ledsless than 0.0003
Working Temperature-25℃~65℃
Drive Mode1/8
Working Humidity10%~99%


the outdoor full color led display module ( smd and dip are available)
NumberDrive modeModuel sizeResolutionLed standardpixel density
P41/8 scan256x128mm64x323in162500
p4.811/13scan250x250mm52x523in143222
p51/8 scan160x160mm32x323in140000
P61/8 scan192x192mm32x323in127778
P81/4scan256x128mm32x163in115625
P101/4scan160x160mm16x163in110000
P121/4scan192x192mm16x163in16944
P16static scan256x256mm16x163in13906
P20static scan320x160mm16x83in12500
P25static scan200x200mm8x83in11600
P31.25static scan250x250mm8x83in11024
the indoor full color led display module( indoor usage only)
Numberdrive modemodule sizeresolutionled standardpixel density
p1.9231/32scan246x246mm128x1283 in 1270420
p21/32scan128x64mm64x323 in 1250000
p2.51/16scan160x160mm64x643 in 1160000
p31/16scan192x192mm64x643 in 1111111
p3.911/16scan250x250mm64x643 in 165410
p41/16scan256x128mm64x323 in 162500
p51/16/scan320x160mm64x323 in 140000
p61/16scan384x192mm64x323 in 127778
p7.621/8 scan244x244mm32x163 in 117222

Competitive advantage


(1)Adequacy: With the specific equipment, spare parts allocation adequate, ensure replacement in the first time of equipment failure;


(2)Necessity: On the basis of previous maintenance experience, we configure the spare parts are the key parts of the equipment,

so as to ensure the economic allocation;


(3)Economic practicality: In order to deal with the fault in the shortest time, we configure the spare parts are complete module or unit,

through our training, the owners can easily replace the spare parts, so as to ensure the normal operation of the system.

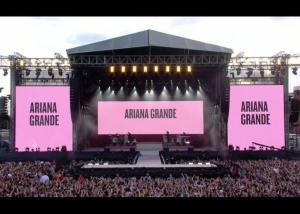

Project case as follows:

China Outdoor HD High Brightness LED Display Die-Cast Aluminum Screen 192mm X 192mm Module Size factory
