| Brand Name: | HANYU |
| Model Number: | P-NLL-2 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 30pieces |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pieces/month. |
| Delivery Time: | 15-35days |
| Packaging Details: | Case |
| Type: | Aluminum Alloy Bolted Type Steel Clamp |
| Dimensions L1: | 210mm |
| Dimensions L2: | 160mm |
| Quantity of U bolt: | 3 |
| Dimensions M: | 16mm |
| Dimensions C: | 22mm |
| Suitable diameter of Conductor: | Φ8.2-Φ17.0 |
| Failure load: | 70kN |
| Company Info. |
| Wuxi Hanyu power equipment co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

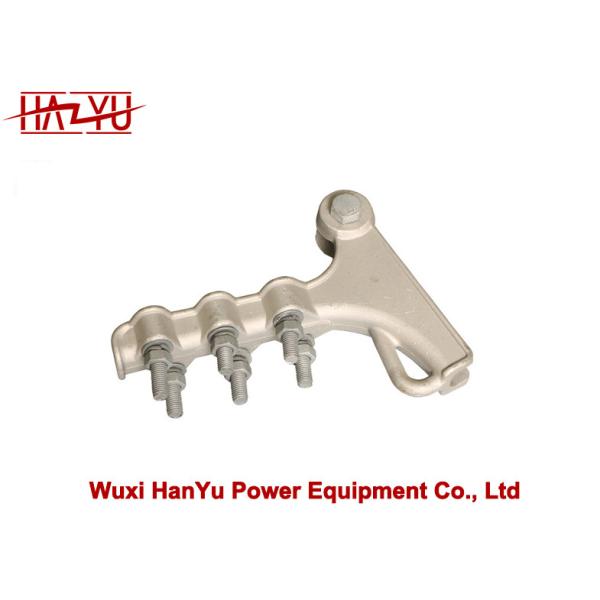

Powerline Tools Bolted Type Steel Clamp Aluminum Alloy Bolted Type Tension Clamp
| Technical features: | |||||||
| |||||||
| Product advantages: | |||||||
| |||||||
| |||||||
| |||||||
| |||||||
| Technical Details | |||||||
| Catalog N0. | Suitable diameter of Conductor mm | Dimensions mm | Quantity of U bolt | Failure load kN | |||
| L1 | L2 | C | M | ||||
| P-NLL-1 | Φ7.6-Φ16.2 | 128 | 105 | 19 | 16 | 2 | 40 |
| P-NLL-2 | Φ8.2-Φ17.0 | 210 | 160 | 22 | 16 | 3 | 70 |
| P-NLL-3 | Φ14.1-Φ18.0 | 220 | 213 | 22 | 16 | 3 | 70 |
| P-NLL-4 | Φ13.6-*Φ25.0 | 320 | 320 | 30 | 18 | 4 | 90 |
| P-NLL-5 | Φ16.0-Φ32.0 | 380 | 380 | 36 | 22 | 5 | 100 |
| P-NLL-6 | Φ28.5-Φ46.5 | 480 | 480 | 50 | 22 | 6 | 100 |
| Typical Parameters(Trapezoid structure) | |||||||||
| Code | Structure Nos/mm | Areas mm2 | Diameter mm | Breaking kN | DC Ω/km | Weight Kg/km | Curent capacity A | ||
| Al | Steel | TACIR | ZTACIR | ||||||
| 160/40 | 18/337 | 7/2.65 | 199.16 | 17.04 | 65.06 | 0.1759 | 730 | 71 | 957 |
| 200/45 | 17/387 | 7/285 | 244.62 | 18.87 | 76.87 | 0.1412 | 883 | 890 | 1105 |
| 200/50 | 17/387 | 7/295 | 24781 | 19.01 | 80.39 | 0.1409 | 906 | 892 | 1110 |
| 250/45 | 18/420 | 7/285 | 294.04 | 20.64 | 8264 | 0.1141 | 1019 | 1017 | 1268 |
| 250/40 | 18/4.13 | 7/275 | 290.96 | 20.51 | 8112 | 0.1143 | 996 | 1014 | 1264 |
| 240/55 | 18/4.13 | 7/3.20 | 29743 | 20.82 | 9312 | 0.1169 | 1083 | 1007 | 1138 |
| 240/50 | 18/471 | 7/3.00 | 290.62 | 20.55 | 88.13 | 0.1157 | 1032 | 1000 | 1131 |
| 315/55 | 18/471 | 7/3.20 | 396.92 | 2315 | 104.06 | 0.0907 | 1266 | 1182 | 1479 |
| 315/50 | 18/471 | 7/3.00 | 36310 | 2291 | 97.2 | 0.091 | 1232 | 1176 | 1471 |
| 330/60 | 18/481 | 7/330 | 386.95 | 2368 | 10970 | 0.0869 | 1329 | 1216 | 1522 |
| 350/55 | 20/471 | 7/3.20 | 404.77 | 2419 | 10933 | 0.0819 | 1379 | 1262 | 1580 |

|
