High-Speed Specialized Automatic Desiccant Cutting and Inserting Machine

Categories Desiccant Inserter Machine
Brand Name: CS
Model Number: CS-120
Certification: CE
Place of Origin: Guangdong,China
MOQ: 2
Price: Price negotiable
Payment Terms: T/T
Supply Ability: 100 units per month
Delivery Time: Delivery date negotiable
Packaging Details: Export wooden box
CAPACITY: 220 bags/min (when the bag length is about 75mm)
POUCH SIZ: length 30~100mm width 30~100mm
POWER SUPPLY: 200~220VAC single-phase 50HZ/60HZ about 500VA
OUTLINE DIMENSIONS: about 650(L)x680(W)x1800(H)mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

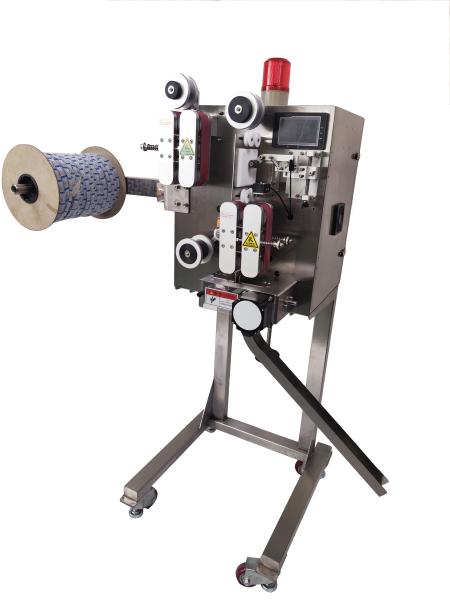

High-Speed Specialized Automatic Desiccant Cutting and Inserting Machine

Are you still worried about your product packaging?
Low capacity - high scrap rate - no guarantee after sale - high cost
Choose Changsheng packaging machinery, all the above troubles are not in words
Changsheng packaging machinery
8 years of craftsmanship
Accurate and rapid packaging saves time and manpower for enterprises to save 70% labor costs
High precision - high capacity - fast efficiency - save time - save capacity - good quality


The working process of the back-sealed desiccant bag dispenser is as follows: First, the position of the continuous bag desiccant is accurately detected by a photoelectric sensor or a color mark sensor; then, the servo motor drives the cutter to cut the desiccant bag according to the pre-set length; then, the robotic arm or conveyor belt will accurately put the cut desiccant bag into the packaging container, such as medicine bottles, food packaging bags, etc.; finally, the equipment will be linked with the front-end and back-end equipment, such as packaging machines, capping machines, etc., to achieve synchronization of the entire production process.


Feature
1. Automatically complete the process of bagging, cutting, and bagging to improve efficiency.
2. Avoid human contact to improve hygiene.
3. Using servo motor and PLC control system, advanced digital operation, simple and convenient, can change bags of different sizes.
4. Strong compatibility, suitable for bottles and bags of various specifications and materials, suitable for color-coded or colorless desiccant bags. 5. Integrated high-intelligent sensing technology, can be used with or without color-coded bags.
Bag length
20-150mm
Bag width
20-160mm
Power supply
220V 50HZ
Total power
3.2KW
Net weight
55kg
Machine Dimension
600(L)*750(W)*1500(K)mm
