Sinolift DYC-G Semi-Electric Straddle Leg Stacker

Categories Mate series lifter truck
Brand Name: SINOLIFT
Model Number: DYC-G
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 sets/mouth
Delivery Time: 15 days
Packaging Details: Sandard Export Package
Product name: DYC-G Semi-Electric Straddle Leg Stacker
Driving style: Pedestrian
Load capacity Q: 2000kg
Warranty: 1 year
After service: on-line service,free spart parts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

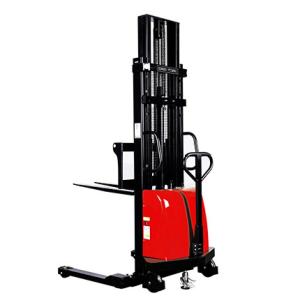

Sinolift DYC-G Semi-Electric Straddle Leg Stacker

Name:DYC-G Semi-Electric Straddle Leg Stacker
Features of DYC-G Semi-Electric Straddle Leg Stacker:
Straddle Leg Stacker is a kind of electric stacker, its structure is simple, flexible control, high explosion-proof safety performance, suitable for narrow passages and limited space, Straddle Leg Stacker is the ideal equipment for warehouse, workshop, pallet loading and unloading.
Model
Straddle Leg Stacker
DYC10-G
Straddle Leg Stacker
DYC15-G
Rated Capacity Q(kg) 1000 1500
Load Center C(mm) 400 400
Lifting Height H(mm) 1600/2000/2500/3000 1600/2000/2500
Min. Fork Height H3(mm) 80 80
Fork Length L(mm) 970 970
Fork Width (Adjustable) E(mm) 320-850 320-850
Turngin Radius Wa(mm) 1335 1335
Outer Leg Width B1(mm) 1080-1360 1080-1360
Inner Leg Width B2(mm) 880-1160 880-1160
Maximum Height of Door Frame During Operation H2(mm) 2165/2532/3032/3532 2165/2532/3032
Height of Door Frame When Retracting H1(mm) 2165/1565/1815/2065 2165/1565/1815
Overall Width B(mm) 1080/1360 1080/1360
Overall Length A(mm) 1685 1685
Minmum Clearance H4(mm) 50 50
Lifting Speed (unladen/laden) mm/s 230/130 230/130
Lowering Speed (unladen/laden) mm/s 400*500 400*500
Outside Diameter of Front Wheel mm 100*70 100*70
External diameter of rear wheel mm 180*50 180*50
Lifting Motor v/kw 12/1.6 12/1.6
Battery v/ah 12V/120AH 12V/120AH
Charger v/a 12V/18A 12V/18A
Net Weight kg 460 460
