Name: Multi Function Standard In Line 2D AOI Machine YSLS820L For SMT Production
Brand: YUSH
Price: 46000 USD

Home > Refrigeration & Heat Exchange Equipment >

Multi Function Standard In Line 2D AOI Machine YSL-S820L For SMT Production

Categories	Auto Insertion Machine
Brand Name:	YUSH
Model Number:	YSL-S820L
Certification:	CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin:	Jiangsu
MOQ:	1 set
Price:	USD46000
Payment Terms:	T/T, L/C, D/P
Supply Ability:	100sets
Delivery Time:	7days
Packaging Details:	wooden case
Weight:	630kg
Power supply:	AC220V=10%,single phase 50/60Hz
AIr Supply:	0.5mpa,70cm³/min
Operation System:	Microsoft Windows 10
Dimension (W×D*H,not contain Tower Light):	1148×1262×1660mm
Power:	1.2W
Working Environment:	Temperature10-40℃.humidity 30-80%RH
PCB Size:	5050mm~510460mm
PCB Thickness:	0.5-5.0mm
PCB Warp Tolerance:	±2mm

Contact Now

Add to Cart

Company Info.

YUSH Electronic Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Multi Function Standard In Line 2D AOI Machine YSL-S820L For SMT Production

PRODUCT FEATURES:

1. Vector analysis algorithm,integrated variety of software algorithms to achieve the best inspection capability

2.Offline programming and debugging.

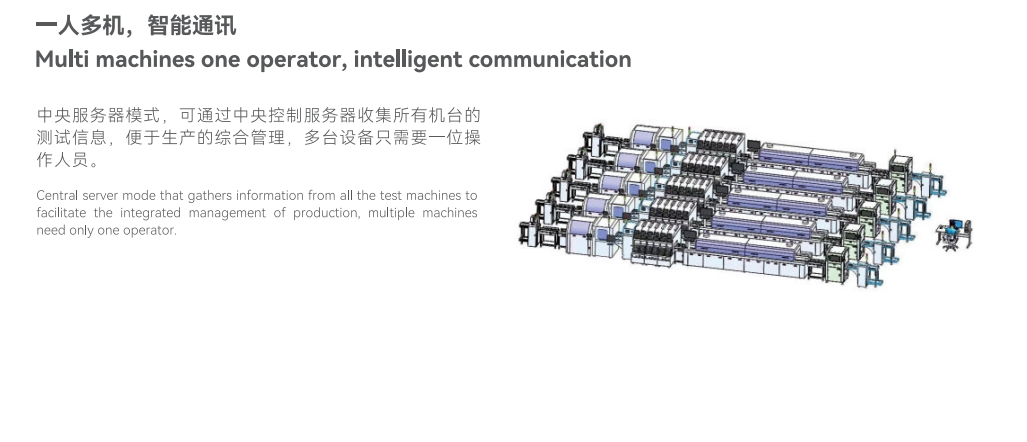

3.The equipment can communicate directly with the NG BUFFER device and other equipment through the communication protocol.

FUNCTION MODULE:

1.Al Intelligent Recognition and various vector image algorithms to get the best inspection capability

By using Al to automatically build a database,automatically configure detection thresholds,and integrate traditional vector analysis algorithms,It can achieve efficient programming and optimal configuration of detection algorithms,thereby improving programming efficiency while ensuring detection capabilities.

^CATEGORY	^ITEM	^{S810/S820/S830 S810L/S820L/S830L}
^{RecognitionSystem}	^Inspection	^{AIIntellgent detectlon algorthmnt,he vectorimage algorthmsindudeloglc operaton,dstance of luminance bounday,chptrachg.OCR/OCV,uminancelclor} ^{emplate matc colordstance,color extractlon(RGB &HSV,value-range of luminance,offsat of luminance,the minimum variation span of luminance ate} ^{More than 30 kinds of the most advanced algorithms}
	^Camera	^{5MP7High performanoe 5MP712MP (20 and 25MP optional)}
	^Lens	^{High-resolution telecentric Lens,20μm,15μm,12um,10μm,8μm for option}
	^Lamp-house	^{Ring tower structure,high intensityRGBW flash lighting}
	^FOV	^{48.96×40.96 mm(5MP &20μm)/36.72×30.72 mm(5MP &15μm)} ^{50×45mm(12MP&15μm)/40×30mm(12MP&10μm)}
	^{0201 Chip}	^<7.6ms
	^{Per-image Time}	^220～450ms
	^{Paste Printing Defects}	^{Missing.overflow,insufficlent,pasting open,stain}
	Component Defects	^{Mssing.shift,skewed,tombstone,bllboard,overtumed,reversed polarity,wrong.damaged}
	^{Solder Defects}	^{Overflow,insufficient,short solder,stain}
	^{WaveSokdering Inspect}	^{Overflow,insufficient,short,excess solder,solder void}
	^{Inspection tems}	^{0201&0.4mmpitch(20μm) 01005&0.3mm pitch(15μm)}
^{Mechanism System}	^{PCB Conweyor}	Bottom to updlamping.Automatic PCB loading and unbading.automatic adjust the conveyor width,5MEMA standard communicationprotocol. Theconveyor height 900±20mm
	^{PCB Size}	^{50×50mm~400×330mm 50×50mm~510×460mm}
	^{PCB Thickness}	^0.5-5.0mm
	^{PCB Warp Tolerance}	^±2mm
	^{Component Clearance}	^{TOP≤30mm,BOT≤30mm}
	^Drver	^{AC servo system,camera moves inthe directions of XY}
	^Orlentation	^<10μm
	^{Mowing Speed}	^{Standard:500mm/s,Max800mm/s}
