Tourism Destinations SIM Card Dispenser Kiosk , Self Check In Dual Screen Kiosk

Categories	Check In Kiosk
Brand Name:	LKS or customized
Model Number:	LKS8539A
Certification:	CE, FCC
Place of Origin:	China
MOQ:	10 units
Payment Terms:	T/T in Advance
Supply Ability:	1000-2000 units per month
Delivery Time:	4-6weeks upon payment
Packaging Details:	Film Wrap,Foam and Wooden Box
Material:	Cold Rolled Steel or Stainless steel or others
Material Feature:	Anti-vandal, Anti-dust,Anti-acid,Waterproof
Application:	Indoor / Outdoor
OS:	Windows 7 / Windows 8 / Linux
Display:	LCD, TFT, LED
Type of Card to be dispensed:	SIM card
Touch Screen:	IR / SAW / Capacitive
Warranty:	12 months after delivery
Power supply:	110-120V, 220V-240V or others
Color and Logo:	Customizable
Function:	Self Payment transactions,information checking,advertising display,self register and check in,advertising displaying,card dispenser
Type:	Free standing dual screen kiosk
Type of card to be read:	Smart card like Magnetic stripe,IC RFID;Contactless card like Mifare

Contact Now

Add to Cart

Company Info.

Shenzhen Lean Kiosk Systems Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

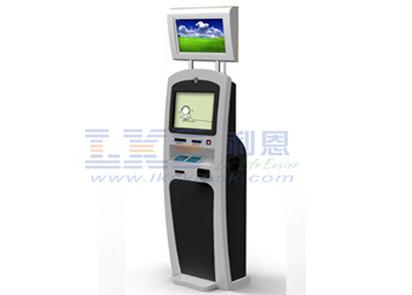

Tourism Destinations SIM Card Dispenser Kiosk , Self Check In Dual Screen Kiosk

Tourism Destinations SIM Card Dispenser Kiosk , Self Check-in Dual Screen Kiosk

Standard configuration:

17 inch monitor
22 inch monitor
17 inch IR touch screen
HD Webcamera
Industrious PC
ID scanner with OCR function
Speaker
Receipt printer
Encrypting Pinpad
Motorized smart card reader
SIM card dispenser
UPS
Cash acceptor
Universal Coin acceptor
Digital signature pad
Alarm system sensor or IO control board
Free standing dual screen cabinet

Specification is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
	CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM	2GB /4 GB / 8GB
	HDD	500G
	Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	17 inch/22 inch ( optional from 8inch to 65inch)
	Brightness	250cd/m2
	angle	horizontal 100°above;Vertical 80°above
	Contrast	1000:1
	Backlight tube life	more than 40,000hours
	Max. resolution	1280×1024
Touch screen	Screen Size	17/19 inch Diagonal ( optional from 8inch to 65inch)
	Resolution	4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer	Interface	High Speed USB
	Resolution	4800*1200 maximum
	Printing speed	4.8 ipm
	Width	58 /80 /112 mm
	Length	Customizable
Webcamera	Resolution	1280*720
	Pixel	8000000
	Adaptive Resolution	1280*720
	Interface	USB 2.0
	Driver	No
Encrypting Pinpad	Keylift‐span	2,000,000 cycles
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	IP65
	Operating Temperature	0° C to 40° C
Motorized card reader	Interface	RS232
	Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
	Magnetic Head Life	500,000/min
	500,000/min	300,000/min
	Power Voltage	DC 24V±5%
Cash acceptor	Validation Rate	98% or higher
	Banknote size	Width: 62or 71mm; Length:120-160mm
	Detection ability	High detection of forged bills
	Bill Escrow	one bill
	Cashbox capacity	1000 banknotes max
	Operating Voltage	12V DC or 24V AC
	Operating Temperature	0° C to 55 ° C (12 V DC platform); -18° C to +60 ° C (24 V AC platform)
Coin acceptor	Coin Acceptance	Max 32 coin types, in 216 or 132 channels
	Coin Accepted Size	Coin diameter: 15-31.5mm ( optionally up to 32.5mm) Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
	Accepting Speed	2 Coins/Sec
	Supply Voltage	10V-16V DC
SIM card dispenser	Interface	RS232
	Card specification	86mm×54mm×0.2-1.8mm
	Working environment	From -30°C to 70°C
Digital signature pad	Size of the induction zone	4*3 inch
	The precision of the digital pen	0.25 mm (0.01 inch)
	Digital board resolution	Digital board resolution
	Digital pen induction height	15 mm maximum
	Reading rate	100 pps (points per second)
	Interface	Interface
	Others	LED status indication
ID scanner	ID scanner	500 million,resolution 2592X1944
	Scan size	A4 maximum
	Image output	JPG,BMP,TIF,PDF,TGA,PCX,PNG,RAS type;color,gray ,monochrome;
	Sensor	CMOS
	OCR	Extract text to word file
	Interface	USB 2.0
UPS	Input voltage	145-290 V
	Output voltage	200-255 V
	Output frequency	50±0.5Hz
	Transient time	50±0.5Hz
	Max time for supplying a single PC	3~20minutes (for single PC)
Alarm system sensor / IO control board	Function	Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers	Features	Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
Free standing Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package	Security Packing method with bubble foam and wooden case

Other Optional hardware components List is as following:

Barcode scanner for QCR code from cell phone
Cash dispenser
Palm vein scanner
WIFI or 3G Wireless module
Coin dispenser
ID / Driver licence / Social insurance card double-side scanner
Intercom
Contactless card reader
Cheque scanner / acceptor with MICR function

Description

LKS is a Dual Screen Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.

Application

Tourism destination
Supermarket
Bank
Retailer store
Coffe shop
Park
Human resources room
Shopping Mall
Railway Station
Metro Station
Parking Lot
Bus station
Other Public area

Our Advantages:

Design for 24 / 7 Operation

Inner air recycling design for heat and humidity control
Alarm system sensor with reporting function
Less power consuming and more stable Industrious modules
Fixed on floor and lockable

Cost-saving Strategy

Independent modular hardward devices
Excellent supply chain management
Maintenance free

Appearance

Coloful design
Eyesight attractive
Brand promotion with LOGO displaying
Customizable decorations
High-quality design sketch
