Automatic Multifunction Self-checkin Kiosk Without Involvement From Staff

Categories Check In Kiosk
Brand Name: LKS / OEM / ODM
Model Number: LKS8510
Certification: CE, FCC
Place of Origin: China
MOQ: 10 units
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Delivery Time: 4-6weeks upon payment
Packaging Details: Film Wrap,Foam and Wooden Box
Display: 2*19'' AUO screen
Application: Indoor
Keyboard: With mouse and touchpad
A4 printer: Laser black and white
Type: Top up dual screen kiosk
Function: Self registration
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

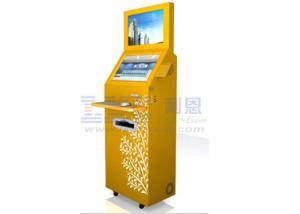

Automatic Multifunction Self-checkin Kiosk Without Involvement From Staff

Automatic Multifunction Self-checkin Kiosk Without Involvement From Stuff


Standard configuration:


  1. 19 inch monitor
  2. 17 inch IR touch screen
  3. Industrious PC,2G RAM,500G HDD
  4. Wireless module like 3G / GPRS,WIFI,Blurtooth
  5. Speaker
  6. Laser A4 printer
  7. Metal keyboard with touch pad
  8. Card reader
  9. Free standing dual screen cabinet

Specification is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size19 inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Contactless IC/ NFC / RF card readerCard typeISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
StatusLED indicator to show the power or communication status
InterfaceSupport ISO14443
A4 printerInterfaceHigh speed USB / RS 232
Resolution4800*2400 maximum
Printing speed20 pages /second
Capacity of paper bos2100 A4 sheets maximum
Metal keyboard with touch padKeys104 * numberic / letters / signs keys
OtherIP65 waterproof
SpeakerDual channel amplified speakers for Stereo , 8Ω 5W.
Webcam500 million pixels,USB driver
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:


  1. Dot matrix printer
  2. Cash acceptor / dispenser
  3. Coin acceptor / dispenser
  4. Palm vein scanner
  5. Fingerprint scanner
  6. Manual magnetic stripe swipe card reader
  7. ID / Driver licence / Social insurance card double-side scanner
  8. Passport scanner
  9. Encrypted Pinpad
  10. Receipt printer
  11. Stainless metal keyboad with track ball
  12. Digital signature pad
  13. Cheque scanner / acceptor with MICR function

Application

  • Cinema
  • Museum
  • Financial agency
  • HR department
  • Gymnasium
  • Conference lobby
  • Exibition
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area


Our Advantages:


Design for 24 / 7 Operation

  • Fixed on floor and lockable
  • Integrated industrial level compenents from worldwide famouse brands
  • Inner air recycling design for heat and humidity control
  • Alarm system sensor with instant reporting function

Cost-saving solution

  • No staff invloving
  • Ease-of-use,maintenance free
  • Design and production on our own
  • Two screen controls under only one PC
  • CE,FCC RoHS certification

The reason to choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like ,overseas like Oscar.
