Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making
Categories Roof Roll Forming Machine
Brand Name: FMS
Model Number: 840/820/850
Certification: CE
MOQ: 1
Price: 10000-15000USD
Payment Terms: L/C, T/T, D/P
Supply Ability: 1000
Delivery Time: 45days
Packaging Details: 7500*1500*1400
Place of Origin: china
Machine Size: Depend on profiles
Machine Weight: 5000kg
Form Speed: 10-15
Roller Materials: 45#Steel
Warranty: 1
Thickness: 0.3-0.8
Hydraulic Motor: 5.5KW
Forming Stations: 18
Cutting Method: Hydraulic cutting
Color: depend on customer
Contact Now
Company Info.
Cangzhou Famous International Trading Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making

Triple Layer Roof Sheet Roll Forming Machine
Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet three layers roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time

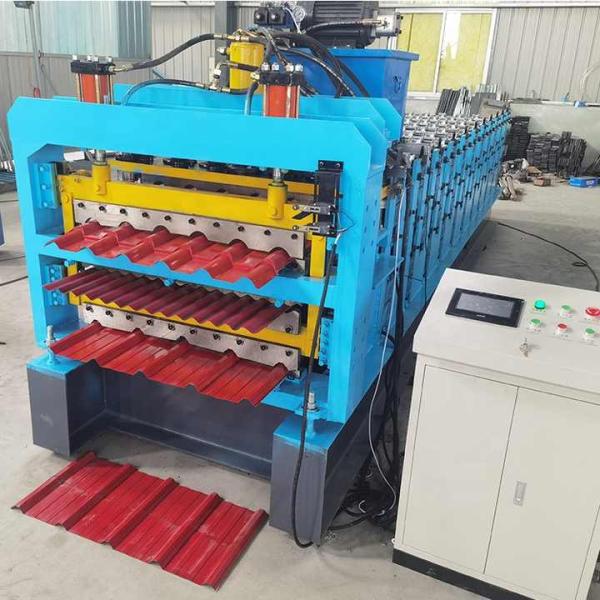

Building Material IBR Panel / Corrugated Metal Steel Glazed Tile Roofing Sheet Machine Three Layer Roll Forming MachineBuilding Material IBR Panel / Corrugated Metal Steel Glazed Tile Roofing Sheet Machine Three Layer Roll Forming MachineBuilding Material IBR Panel / Corrugated Metal Steel Glazed Tile Roofing Sheet Machine Three Layer Roll Forming Machine
working principle.
The tile pressing machine belongs to the cold bending roll forming machine, which mainly presses the color steel plate into the required shape, size and shape by rolling. When the machine works, the power group drives the roller shaft, and the roller forming wheel is used to roll the color steel plate with the specified thickness. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.
Product Specification
No
Item
Data
1
Raw material width
1000-1200 mm
2
Sheet effective width
750-1000 mm
3
Raw material
Color steel sheet or galvanized steel sheet
4
Material thickness
0.3-0.8 mm or customized
5
Forming roller material
45# steel plated with chrome
6
Shaft diameter
80mm
7
Forming roll station
13-18steps
8
Main motor power
3 KW 4 KW 5.5 KW(according to type)
9
Hydraulic power
4 KW (according to type)
10
Control system
PLC control

Roll Forming Machine Components:

No.NameQty
1De-coiler3Set
2Roll Forming Machine1 Set
3Hydraulic Cutting Devic1 Set
4PLC Control Box1 Set
5Output table1 Set

Display and Application
Roof sheet three/double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Product Tags:

Metal Iron Roofing Sheet Making Machine



Corrugated Roofing Sheet Making Machine



Three Layers Roofing Sheet Making Machine


China Three Layers Corrugated Trapezoid Steel Roof Roll Forming Machine Metal Iron Roofing Sheet Making factory
