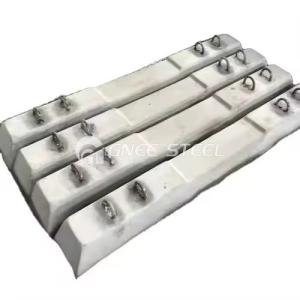

High-Strength Prestressed Concrete Sleeper For Heavy Load Railway Tracks

Prestressed concrete sleeper

A Prestressed Concrete Sleeper (also called a Prestressed Concrete Tie) is a type of railway track support made from reinforced concrete. It is designed to handle heavy loads and the forces from passing trains. The prestressing process makes the concrete stronger and more durable, reducing the risk of cracks. These sleepers help keep the rails in place, ensuring smooth train movement and spreading the weight evenly across the track. GNEE Rail is a trusted and professional manufacturer specializing in high-quality concrete railway sleepers. We primarily produce various types of prestressed concrete sleepers, including the new II type, IIIa, IIIb, IIIc types, as well as II and III type bridge sleepers, among others. Custom designs are available according to your specifications, and we offer comprehensive, one-stop services. Feel free to contact us.

Prestressed concrete sleeper specification

Product NamePrestressed concrete sleeper
MaterialPrestressed concrete and steel bars
Size and SpecificationsCustomers' drawings
StandardGB EN BS ARME AS and etc
Concrete GradeC40
Railway speedup to 350Km/H
Sleeper Accessoriesbolts, screws, bushings and etc
Annual Output Capacity500,000pcs and 500 groups

Prestressed concrete sleeper Technical Parameters

1.Normal sleepersWidth 220mm; thickness 160mm; length 2500mm;
2.Turnout sleepers (Normal)Width 220mm; thickness 160mm; length 2600 ~ 4850mm, with 150mm carry a total of 16 lengths;
3.Turnout sleepers (Standard)Width 240mm; thickness 160mm; length 2600 ~ 4800mm, with 200mm carry a total of 12 lengths;
4.Bridge sleepersWidth 220mm; thickness 240,260,280,300 mm; length 3000mm.
