| Categories | MANET Radios |
|---|---|
| Brand Name: | IWAVE |
| Model Number: | Defensor-BM3 |
| Certification: | CE, MIC |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | 50000/month |
| Delivery Time: | 5-8work days |
| Packaging Details: | Standard Carton Box |
| VHF Frequency: | VHF: 136-174MHz |
| UHF: | UHF1: 350-390MHz UHF2: 400-470MHz |
| Communication Range: | 20km/hop |
| RF Power: | 2/5/10/15/20/25W(adjustable by software) |
| Hop: | Max 6hops |
| Dimension(with battery): | 270*168*51.7mm(without antenna) |
| Channel: | 3CH/2CH/1CH |
| Battery Life: | 28h(RT, max power) |
| Company Info. |
| IWAVE COMMUNICATIONS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Ad-hoc Portable MANET Radio Repeater

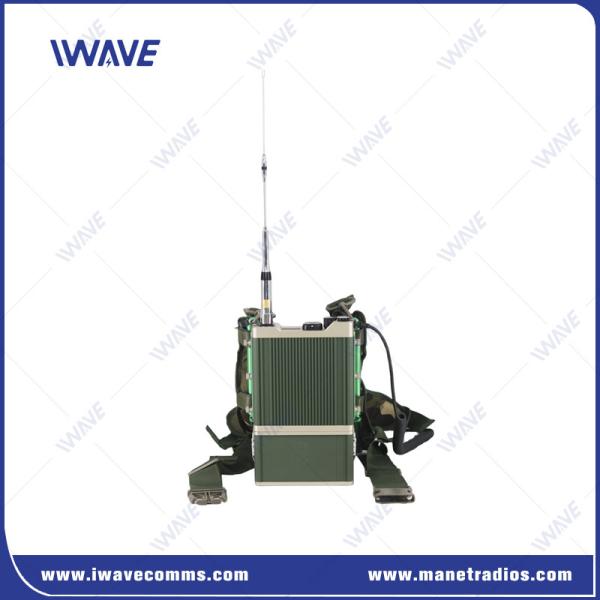

20km Ad-hoc Portable MANET Radio VHF Base Station
Introdcution
The BM3 manpack base station is small in size, thin in thickness, and light in weight. It is an ad-hoc network base station equipment for individual mobile field communication, whichsupports multiple individual soldiers to automatically form a network with each other to form a large-area mountainous field mobile communication network.
IWAVE BM3 is a ad-hoc MANET(Mobile Ad Hoc Network) Radio repeater for man-pack, The repeater adopts wireless interconnection technology to quickly create multi-hop narrowband networks through cascading connection, free of any IP link such as fiber optic and microwave.
Key Features
Remote Management, Keep Networking Status Always Known
●The portable on-site command dispatch center(Defensor-T9) remotely monitor all the mesh nodes radios/repeaters/base stations in the tactical ad-hoc network created by IWAVE Defensor series. Users will get the real time information of battery level, signal strength, online status, locations, etc via T9.
High Compatibility
●All the IWAVE Defensor series--narrowband MESH radios and base stations and command center can smoothly communicate with each other to build a long distance narrowband self-grouping and multi-hop tactical communication system.
High Reliability
●The Narrowband Mesh Radio network is highly reliable because if one path is blocked or a device is out of range, data can be routed through an alternative path.
Application
Emergency event response
Rescue and disaster response
Public Safety Management
VIP Security
Disaster Relief
Search and rescue in forests & jungle
Transportation
Specifications
| Manpack MESH Radio Base Station(Defensor-BM3) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz | RF Power | 2/5/10/15/20/25W(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 10.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension(with battery) | 270*168*51.7mm(without antenna) | Audio Distortion | 5% |
| Weight | 2.8kg/6.173lb | Environment | |
| Battery | 9600mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | 28h(RT, max power) | Storage Temperature | -40°C ~ +85°C |
| Case Material | Aluminum Alloy | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz | TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI | 70dB @ (digital) 65dB @ (digital) | Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
