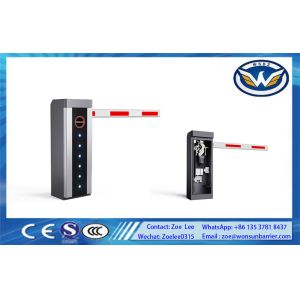

6th Brushless DC Motor Car Park Barrier Gate With LED

Vehicle Barrier Gate Features:

Op speed adj.
Speed up & down adj.
Limit angle adj.
Left & right dir quick change.
Barrier arm manual op in power failure.
418 freq learning code anti-copy remote.
Infrared photocell sensor I/O signal input.
Loop detector & radar I/O signal anti-collision input.
Up, down & stop I/O signal input.
Counting (fleet) func.
Traffic light I/O signal output.
Up & down in place, NO & NC signal output.
Delay arm drop func.
Arm auto-reverse func.
Auto lifting in power off (needs extra power storage module).
I/O port single-key cycle up & down func.
Loop detector NO & NC func.
One car one arm to prevent toll evasion func.
I/O port close signal input func.
24V storage battery input func.

2. Technical specifications:

Operating temperature: -30°C to +60°C.
Rated voltage: DC24V.
Operating speed: 1.5 s to 6 s.
Rated current: 9.5A.
Rated power: 100W.
No-load speed: 1850rpm.
Rated speed: 1400rpm.
Rated torque: 59.6N·m.
Relative humidity: ≥85%.
Remote control range: ≤50 meters (clear, sunny weather).
Protection level: IP54.
Maximum arm length: 6m.
