| Categories | DLP Laser Projector |
|---|---|
| Brand Name: | SMX |
| Model Number: | MX-DL4500W |
| Certification: | ISO,CE,RoHS |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | 759usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
| Delivery Time: | 5-20days |
| Packaging Details: | Carton |
| Product Name: | Laser Projector |
| Brightness: | 4500 Lumen |
| Resolution: | 1280x800 |
| Contrast Ratio: | 20000:1 |
| Display Technology: | DLP |
| Projection: | Standard Throw |
| Keystone Correction: | Auto |
| Company Info. |
| Shenzhen SMX Display Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

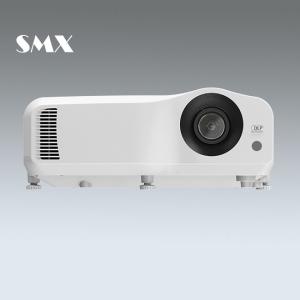

DLP Standard Throw Laser Projector with 4500-lumen Brightness for Large Venues and Educational
The MX-DL4500W stands out with its impressive 4500-lumen high brightness levels, ensuring exceptional visibility even in well-lit environments. This feature makes it an ideal choice for large venues or rooms with ambient light, where clear and vivid projections are paramount. Notably, this projector is a cost-effective solution that weighs just 4.5 kg, offering portability and convenience without compromising performance.
DLP Technology:
DLP technology uses microscopic mirrors to reflect light and create
images on the screen. It provides sharp image quality, high
contrast ratios, and fast response times, making it ideal for
detailed visual presentations.
Laser Light Source
Laser diodes have a significantly longer lifespan compared to
traditional lamps, providing thousands of hours of operation
without the need for frequent replacements.
Specification
| Model No. | MX-DL4500W |
| Basic Specification | |
| Brightness | 4500lm |
| Native Resolution | WXGA, 1280 x 800 |
| Contrast Ratio | 20000:1 |
| Display Color | 30 Bits (1,037,000,000 colors) |
| Lens (F=, f=mm) | F=2.42~2.62 ; f=22~25.79 |
| Aspect Ratio | Native 16:10 |
| Throw Ratio | 1.544-1.860 |
| Zoom Ratio | 1.2X |
| Lifetime | 20,000 hrs |
| Keystone Adjustment | 1D(Manual), Vertical +/- 30 degrees |
| Auto Keystone | Yes (Vertical) |
| Projection Offset | 104%±5% |
| Resolution Support | VGA(640 x 480) to WUXGA(1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120KHz |
| Focus Range(Image Size) | Mechanical:40"(1.31M)~300"(10.21M) Optical:40"(1.31M)~300"(10.21M) |
| Interface | |
| Computer in (D-sub 15pin) | x1 |
| HDMI (1.4) | x 2 |
| RS232 (DB-9pin) | x1 |
| USB (Type A) | USB 2.0 (5V/1.5A) |
| USB (Type Mini B) | x 1 (1 for FW upgrade) |
| Audio in (Mini Jack) | x1 |
| Audio out (Mini Jack) | x1 |
| Speaker | 10Wx 1 |
| IR Receiver | x1 Front |
| Environment | |
| Dimensions (WxDxH) | 353x290x144(mm) |
| Weight | ≤ 4.8Kg |
| Normal Power Consumption(Max) | 220W |
| Normal Power Consumption(Typ) | 210W |
| ECO Power Consumption(Max) | 170W |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption | CEL Level 2 or Level 1(at 220V 50Hz ) |
| Stand-by Power Consumption | <0.5W |
| Acoustic Noise (Typ./Eco.) | 35/33 dBA |
| Operating Temperature | 0~40℃ |
| High Altitude Mode(1500~3000m) | Yes |
| Color | White |
| Security Bar | Yes |
| Kensington Security | Yes |
Accessories | |
| Remote Control, Power Cord, Quick Start Guide, HDMI Cable | |
|
