| Categories | ATEX Zone 2 Equipment |
|---|---|
| Brand Name: | Kingway |
| Certification: | CE,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Units Per Year |
| Delivery Time: | 30 Working Days |
| Packaging Details: | WOODEN CARTON |
| Product: | Air Compressor |
| Engine form: | Air-to-air cooling, water cooling |
| Company Info. |
| Qingdao Kingway Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

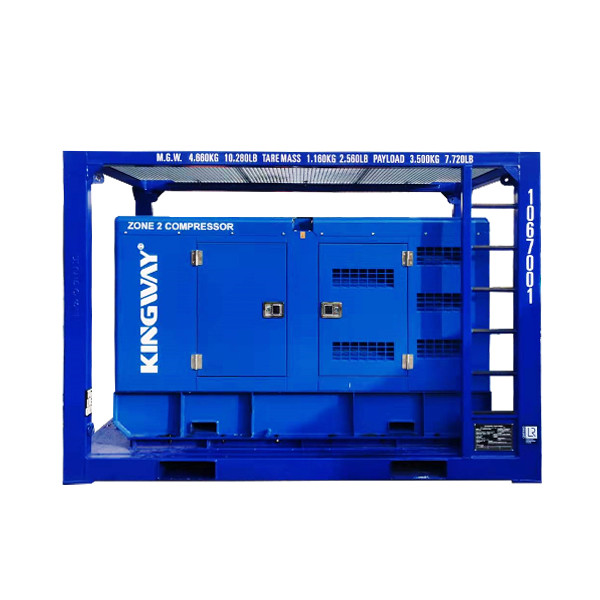

| Equipment: | 750CFM Explosion-proof Diesel Engine Air Compressor |
| Directive : | 2014/34/UE-ATEX |
| Standard: | EN 60079 series / EN 1834 series |
| Convert to: | Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc ) |
| Original Compressor: | Sullair DLQ750H |
Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 750CFM Explosion-proof Air Compressor
| MODEL | DLQ750H-EX |
| COMPLETE MACHINE | |
| Explosion-proof Mark |  II 3G IIB T3 Gc |
| Hazardous Zone | ZONE 2 |
| Certificate | 1.ATEX Certificate for engine 2. for Compressor set. 3.All certificate are from Europe. |
| Nominal Volume Capacity (m³/min /cfm) | 21/ 750 |
| Rated Discharge Pressure (bar/psi) | 10.3 /150 |
| Working Pressure Range (bar) | 5.5-12.0 |
| Max. Working Angle | 15° |
| Noise Sound Level (±3 dBA at 7m) | 79 |
| Machine Weight (kg) | 4200 (dry) for reference only |
| Dimensions: L x W x H mm | 3750X2000X2250, with DNVGL-ST-E271 certified lifting frame |
| Specification of Air Supply Valve | 1-Rp2, 1-Rp3/4 |
| DIESEL ENGINE | |
| Manufacturer | CUMMINS |
| Model | 6CTA8.3-C260 |
| Full-load / No-load Speed (rpm) | 1850/1300 |
| Rated Power (kW/bhp) | 194/260 |
| Displacement (L) | 8.3 |
| Engine Oil Capacity (L) | 18 |
| Fuel Tank Capacity (L) | 375 |
| Electrical System Voltage (V) | 24 |
| Rated Capacity of Battery | 210Ah/ea |
|
