IEC 60884-1 Figure 23 Load Cabinet With Three Stations output Current 30A

IEC 60884-1 Figure 23 Load Cabinet With Three Stations output Current 30A

Equipment Introduction:

The load cabinet are designed and manufactured according to IEC 60884-1: 2022 Clause 20 &21 figure 23; IEC60669-1:2017 Clause 18 &19 and etc. It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contacts has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences.

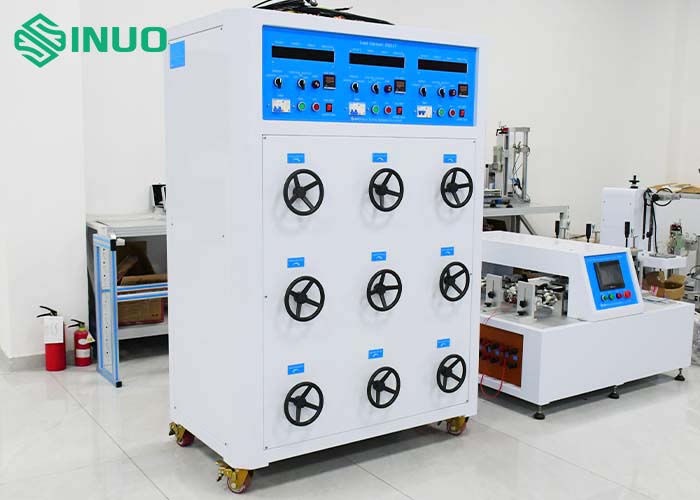

Front top is the operator control panel, the panels are made of high quality aluminum plate, etching sandblasting colored craft, attractive and durable. There are power switch/current/voltage and power/power factor displaying instruments, load power switches, status indicators, start and stop buttons, capacitance switches, load switches and alarms etc. Below corresponds to the output voltage regulation knobs, output current regulation knobs and power factor regulation knobs. The load box has three independent stations, each with resistive, inductive load two in one feature, they are switchable. The interior of the load box is cooled by strong wind convection cooling. At the back of the load box there are wire connecting terminals, the load box outputs current voltage and power during the detection by connecting the wire with the test samples on the endurance test machine.

Technical Parameters:

Sinuo is an innovation manufacturing company, specializing in the research and development and sales of laboratory construction and testing equipment for electrical appliances (covering the construction of energy efficiency and performance laboratories, as well as supplementary waterproof testing laboratories, materials flame-retardant laboratories, basic general testing equipment, etc.), Sinuo aims to provide clients with complete laboratory construction, system integration, R&D, rectification and after-sales service, and strive to be the leader of one-stop service for laboratory construction in the field of electrical appliance testing.

Sinuo  products are composed of all kinds of testing equipments as per standards of IEC/ BS/ EN/VDE/UL/ ISO..., such as household appliances testing equipment, energy efficient testing laboratories and comprehensive performance test system for household appliances, battery testing equipment,  automotive testing equipment, luminaries testing equipment,IP code testing equipment, environmental test chamber, flammability test chambers, EMC testing equipment and etc.

Sinuo employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.

Sinuo cooperate with many research institutions and schools to enable our techincal capacities. Sinuo has two own factories, one is in Guangzhou, the other is in Dongguan, and authorized agents and representative offices in Korea, South Africa, Egypt,Pakistan and Philippines.

Sinuo combines all the R/D and production advantages, contributes to provide perfect, high-end and systematic electrical appliance testing laboratory solutions, products and services for corporate customers, universities and third-party laboratories. Our clients include Bureau Veritas, CSA, Intertek, TUV Rehiland, TUV SUD, SGS, etc.
