2260-P-0DN-4 2260-P-2DN-6 Georg Fischer GF Signet 2260 Ultrasonic Level Transmitters 2260-V-0DN-4 2260-V-2DA-15

2260-P-0DN-4 2260-P-2DN-6 Georg Fischer GF Signet 2260 Ultrasonic Level Transmitters 2260-V-0DN-4 2260-V-2DA-15

Product Description:

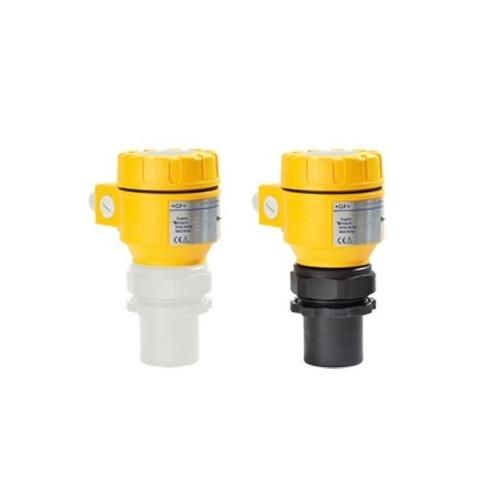

The GF Signet 2260 Ultrasonic Level Transmitters is a rugged, high performance ultrasonic level measurement transmitter, having transducer and processing electronics and a display/programming unit incorporated in one single housing. All type 2260 Level Transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15 meters.

For small, stand alone tanks the transmitter provides a simple 2-wire 4 to 20 mA output, with additional power relay contacts. It can be programmed using push buttons and the large, graphic display. For large and/or multiple tank applications versions with HART interface are recommended, communicating directly with a panel mount controller or PLC. The HART protocol can easily be used for programming these versions.

Applications for the 2260 include:

• River water
• Seawater
• Potable water
• Demineralized water
• Treated water

Applications:

• 2-wire compact transmitters
• Non-contact level metering
• Ranges:
  • 0.2 to 4 m / 0.65 to 13 ft
  • 0.25 to 6 m / 0.82 to 20 ft
  • 0.45 to 15 m / 1.5 to 49 ft
• Accuracy: ±(0.2 % of measured distance plus 0.05 % of range)
• Narrow 5° beam angle
• Level, volume and open channel flow
• Fully temperature compensated electronics
• PP or PVDF sensor body

Packing and Shipping:

Product Packaging:

The Georg Fischer Piping System product will be packaged securely to ensure that it arrives at your doorstep in perfect condition. The product will be packed in sturdy cardboard boxes with sufficient cushioning material to prevent any damage during transit.

Shipping:

We offer reliable and fast shipping options for the Georg Fischer Piping System product. Our shipping partners will ensure that your order is delivered to you within the promised timeframe and in excellent condition. The shipping costs will be calculated based on your location and the weight of the product.

FAQ:

Q: What is the brand name of the piping system product?

A: The brand name of the piping system product is GF Signet.

Q: What is the place of origin of the piping system product?

A: The piping system product is manufactured in Switzerland.

Q: What certifications does the piping system product have?

A: The piping system product has certifications including CE, UKCA, ATEX, UL, and others.

Q: What is the minimum order quantity for the piping system product?

A: The minimum order quantity for the piping system product is 1 set.

Q: What is the price range of the piping system product?

A: The price range of the piping system product is between $100 and $1000.

Q: What are the packaging details for the piping system product?

A: The piping system product comes in 100% original carton packaging.

Q: What is the delivery time for the piping system product?

A: The delivery time for the piping system product is typically 10-20 workdays.

Q: What are the payment terms for the piping system product?

A: The payment terms for the piping system product include TNT, DHL, FEDEX, EMS, and UPS.

Q: What is the supply ability for the piping system product?

A: The supply ability for the piping system product is 100 sets per month.
