LVDS Interface 10.1 Inch TFT LCD 1024*600 Dots With capacitance Touch Screen

Categories 10 Inch LCD Module
Brand Name: TXWEI
Model Number: TXW100041B0-CTP
Place of Origin: Guangdong,China
Certification: CE ROHS FCC
MOQ: negotiate
Price: negotiate
Packaging Details: cardboard
Delivery Time: 16
Payment Terms: L/C TT D/P
Supply Ability: 10000pcs
Number of pixels: 1024*3RGB(H)X600(V)
Active area: 222.72(H) *125.28(V)
Lcm pin n count: 60
Lumens degrees: 450d/m²
size: 10.1
Backlight current: 140mA
Backlight leds: 30
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LVDS Interface 10.1 Inch TFT LCD 1024*600 Dots With capacitance Touch Screen

LVDS 10.1 Inch TFT with CTP Product Introduction

TXW100041B0-CTP is a 10.1-inch 16:9 ratio full-color TFT LCD display screen with a resolution of 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+80 working temperature, and high brightness display of 450cd/m².


In addition, TXW100041B0-CTP offers three product features: high brightness (450 cd/m²), high contrast (800:1), and anti glare. These features improve image display in complex lighting environments, enhancing the visual experience of customer products under various conditions.

This product is widely used in fields such as car navigation, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.


Features

ItemSpecification
LCD size10.1 inch(Diagonal)

Lumens degrees

450cd/m²

Resolution

1024*3RGB(H)X600(V)

Display modeNormally White, Transmissive
Dot pitch

0.2175*0.2088mm

Active area

222.72(H) *125.28(V) mm

Module size(with CTP)247.69*154.09*6.8 mm

LCM Driver IC

HX8282A11

LCM interface

LVDS Bit Interface

Lcm pin n count

60

View direction(Gray Inversion)

ALL O’CLOCK

Touch screen structure

G+G

Touch Driver IC

GT9271

Touch Interface

IIC

operating temperature

-20+70

storage temperature

-30+80

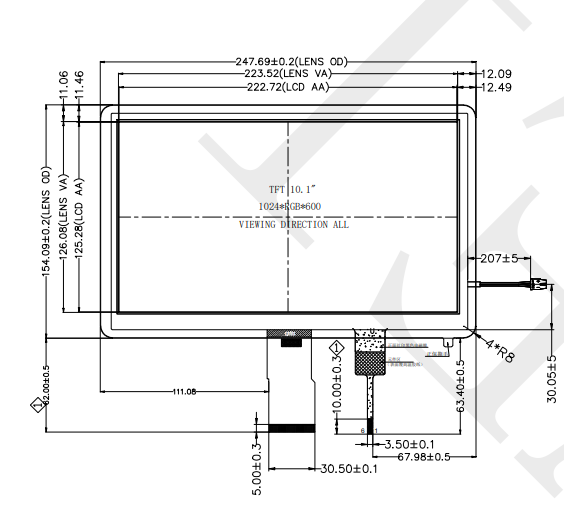

LVDS Inch TFT with CTP Product Drawing




Absolute Maximum Rating

CharacteristicsSymbolMin.Max.Unit
LCM Operating TemperatureTOPR-20+70°C
LCM Storage TemperatureTSTG-30+80°C
TP Operating Temperature & Humidity (20% ~ 90%RH)TOPR-20+70°C
TP SStorage Temperature & Humidity (20% ~ 90%RH)TSTG-30+80°C
HumidityRH--90%

TFT DC Characteristics

CharacteristicsSymbolMin.Typ.Max.UnitNote
TFT OperationFrame rateHz--60--Hz--
Supply Voltage for(DC/DC)VDD3.03.33.6V--
TFT Gate ON VoltageVGH--18--V--
TFT Gate OFF VoltageVGL---6--V--
TFT Common VoltageVcom--4.4--V--
AVDDAvdd--9.6--V--

Notes :

1. VGH is TFT Gate operating voltage.

2. VGL is TFT Gate operating voltage. The low voltage level of VGL signal must be

fluctuates with same phase as Vcom.

3. Vcom must be adjusted to optimize display quality, as Crosstalk and Contrast Ratio etc..

4. The value is just the reference value. The customer can optimize the setting value by the

different D-IC.


Back-Light Unit Characeristics

The back-light system is an edge-lighting type with white 42 LEDs. The characteristics of the back-light are shown in the following tables.

CharacteristicsSymbolMin.TypeMax.UnitNotes
Forward VoltageVF16.8--19.2V-
Forward currentIF--140-mA-
Luminance(With LCD+CTP)LvTBD--cd/m2-
LED life timeN/A--30000--HrNote 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.


Reliability Test Item


No.Test ItemTest ConditionNotes
1High Temp. Storage+80°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.


2Low Temp. Storage-30°C / 96H
3High Tempe. Operating+70°C / 96H
4Low Tempe. Operating-20°C / 96H
5High Temperature /Humidity storage50°C x 90%RH /96H
6Thermal and cold shockStatic state, -20℃(30min) ~70℃ (30min),10 cycles

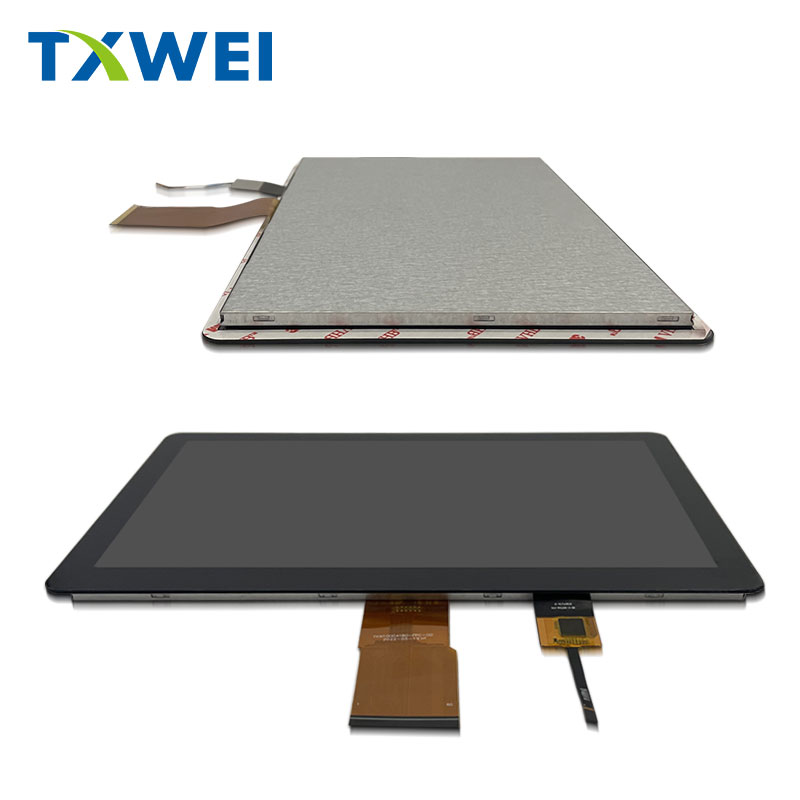

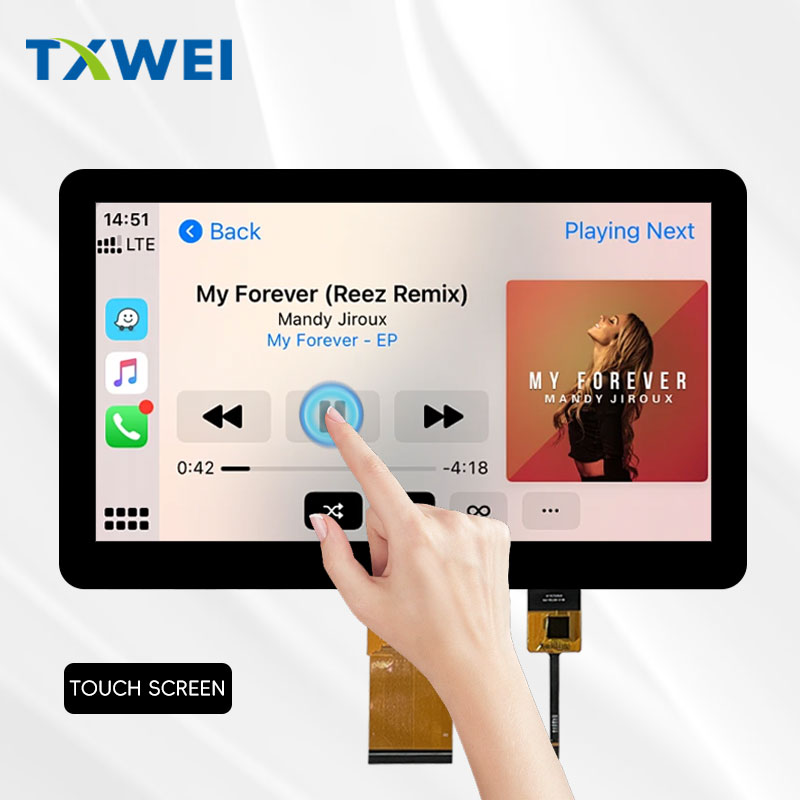

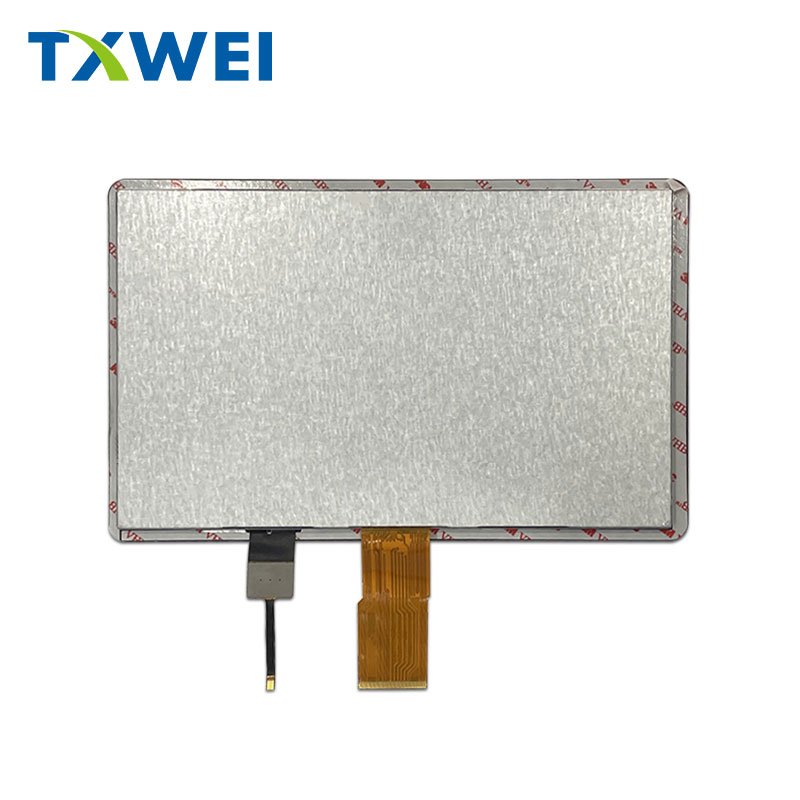

Product Image





Factory Facilities and Certificates


Customization:

  1. Customize your 10.1 Inch TFT Thin Film Transistor LCD Monitor with TXWEI, model number TXW100041B0-CTP, originating from Guangdong, China.
  2. This product is certified with CE ROHS FCC and has a minimum order quantity and price that can be negotiated. It is packaged in cardboard and has a delivery time of 16 days.
  3. Payment terms include L/C TT D/P, and the supply ability is 10000pcs.
  4. The mechanical outline size is 247.69*154.09*6.8mm, with 30 backlight LEDs and LCM Driver IC of HX8282A11.
  5. The active area is 222.72(H) *125.28(V) with a number of pixels of 1024*3RGB(H)X600(V).
