NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A

Categories PCB Relay
Brand Name: NNC
Model Number: NNC67H-1Z DC12V 30A
Certification: UL/CE/TUV/CQC
Place of Origin: China
MOQ: 1000pcs
Price: USD 0.57~1.12
Payment Terms: T/T, L/C
Supply Ability: 30k pcs 7 days
Delivery Time: 7-14 days
Packaging Details: carton packing

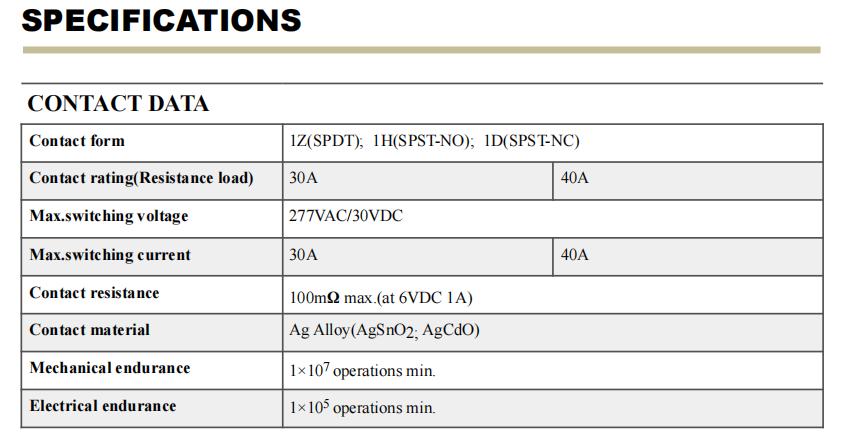

Contact material: Ag Alloy
Contact form: Z=C(CO); H=A(NO); D=B(NC)
Contact Load: 30A 40A
Coil voltage: DC3V-110V; AC6V-240V
Max switching voltage: 277VAC/30VDC
Mechanical life: 1×10^7 operations min.
Electrical life: 1×10^5 operations min.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A

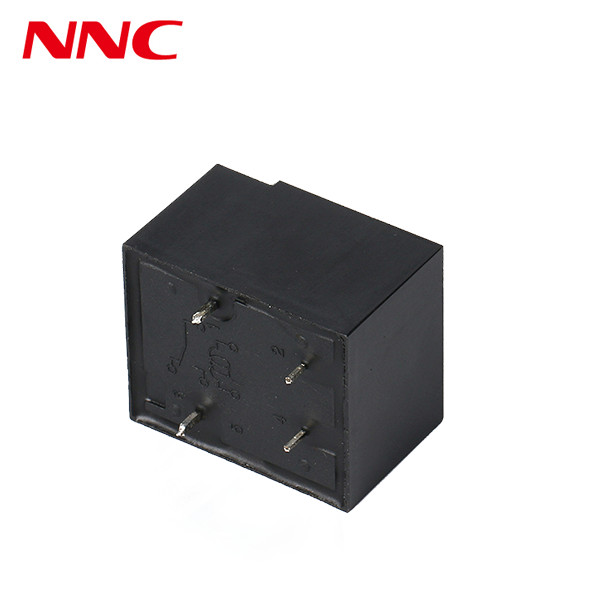

NNC67H Miniature High Power Relay
Features:
Miniature,PCB terminals
Quick-connect terminals
Switching capability up to 40A
AC/DC coil relay
RoHS compliance
TUV:R50301238
UL:E235027
CE:5398090516 CQC:14002106906
Certificate

Certificate

Shipment & Packaging

Shipment & Packaging


PackingPaper Box
Inner Box(pcs)50
Outer Box(pcs)500
Dimension of the carton
360×210×415mm
WeightG.W:16KG N.W:15KG

FAQ

FAQ


Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.


Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.


Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)


Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.


Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.


Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.


Q7: What is your warranty time of the products?
A7: 12-24 months
