Name: High Precision RCG Series Robot Center Gripper For Robotics
Brand: Giant Precision
Price: 1 USD

Home >

High Precision RCG Series Robot Center Gripper For Robotics

Categories	Electric Gripper
Brand Name:	Giant Precision
Model Number:	RCG Series
Certification:	ISO9001
Place of Origin:	China
MOQ:	To Be Negotiated
Price:	To Be Negotiated
Payment Terms:	T/T
Supply Ability:	20000 Sets per Month
Delivery Time:	3-4 Weeks
Packaging Details:	Carton Box
Product:	RCG Series Robot Center Gripper
Recommended maximum clamping diameter:	90mm
Single finger gripping force:	65N
Maximum recommended load:	2KG
Position repetition accuracy:	±0.02mm
Power outage maintenance:	support
Usage environment:	5-40 ℃, below 85% RH
Running noise:	＜40dB
Body weight:	1KG
IP level:	IP40
Rated voltage:	DC 24±10 V
Compliant with international standards:	CE, RoHS
Communication protocol:	Modbus RTU(RS485)

Contact Now

Add to Cart

Company Info.

Suzhou Giant Precision Industry Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

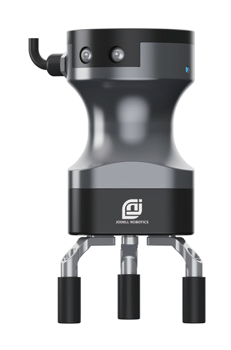

RCG Series

Robot Center Gripper


Extra Large Stroke	IP40 Protection Level	Grab Feedback	Power Failure Self-Locking

Product overview

model	RCG90-065
Single finger gripping force	65N
Recommended maximum clamping diameter	90mm
Position repetition accuracy	±0.02 mm
*Maximum recommended load	2 kg
Power outage maintenance	support
Usage environment	5-40℃,85% RH以下
Running noise	＜40 dB
Body weight	1Kg
IP level	IP40
Rated voltage	DC 24±10 V
Maximum current	1.5 A
Rated current	0.45 A
Compliant with international standards	CE,RoHS
communication protocol	Modbus RTU(RS485)
